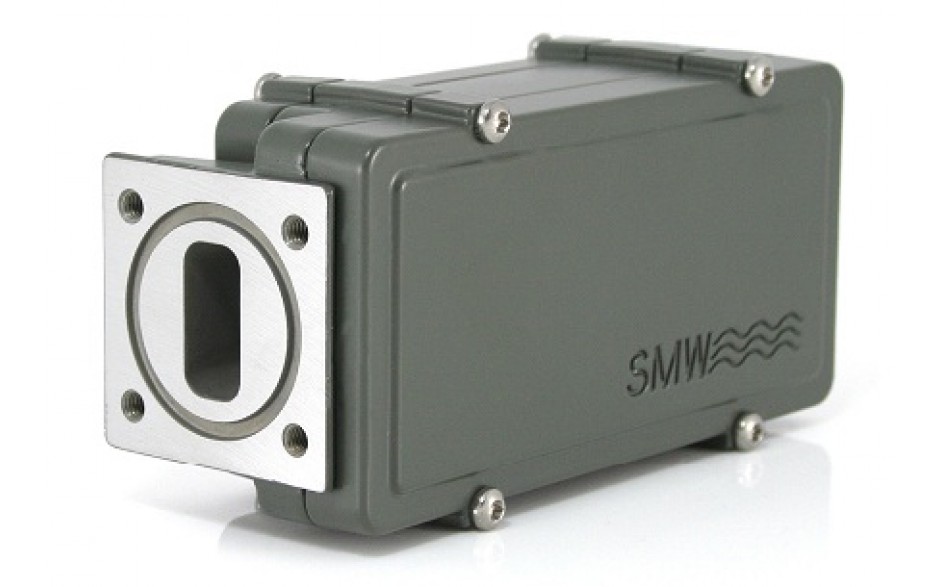

SMW PLL-LNB High stability +/- 25KHz
Commercial quality, Made in Sweden.

Frequency range 11.65 - 12.75 GHz
LO frequency 10.7 GHz
Output frequency 950 - 1450 MHz
LO stability +/-25 kHz (+/-2.5 ppm)
Gain 60 dB typ. (55 dB min.)
Gain variation within 30 MHz max. +/-0.4 dB
Gain variation max. +/-4 dB
Noise Figure, typical 0.8 dB
LO Phase noise typical
-75 dBc @ 1 kHz
-85 dBc @ 10 kHz
-100 dBc @ 100 kHz
-120 dBc @ >1 MHz
LO radiation -60 dBm
Image rejection 40 dB min
P1dB typ. +15 dBm
IP 3 typ. +25 dBm
Input WR-75 waveguide
Output (waterproof) F-connector 75 ohm,
Input VSWR 2.3:1 max
Output VSWR 2.1:1 max
DC power 12 - 24 V 270 mA typ.
Operating temperature -40 to +80 deg C
Storage temperature -40 to +80 deg C
Weight 329 g
Enclosed accessories O-ring
Screw M4x8, 4 pcs
