Kingray SAT42 F-Type Satellite Distribution Amplifier


Kingray SAT42 F-Type satellite distribution amplifier with unique
diplexing on both the input and output for terrestrial signals. The
amplifier is built into a fully shielded die-cast housing with power
through options to the LNB and terrestrial output diplexer for powering

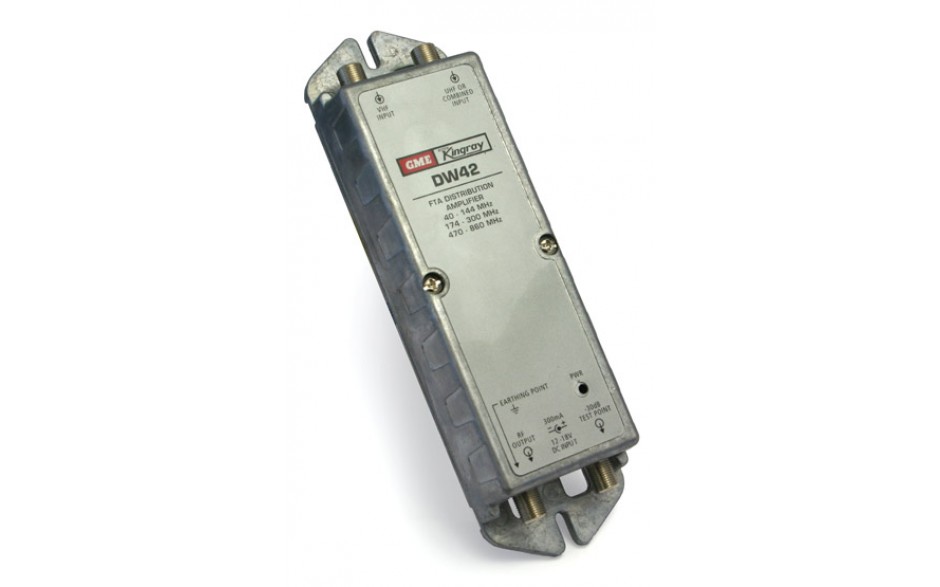

a separate terrestrial amplifier such as a DW42 or DA43
FTA input 5-860MHz, Insertion loss < 1dB
SAT input 950-2150MHz, 42dB gain with 15-0dB Equalisation
Current drain 200mA, Noise Figure < 10dB
Output Level 122dBuV at -35dB IMR
Requires PSK18S power pack additional.

Availability: In stock
