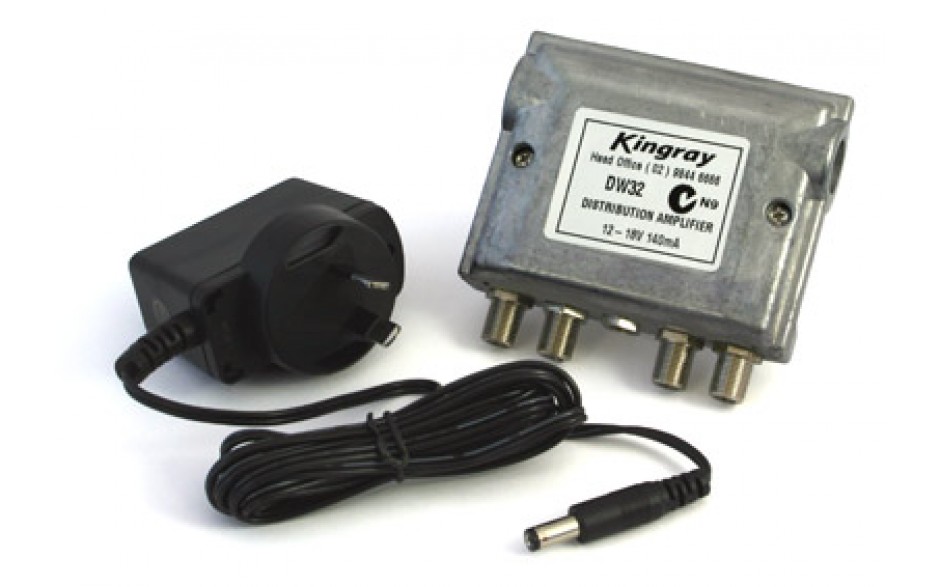

Kingray DW32 F-Type distribution amplifier designed
for a separate VHF or UHF antenna or combined antenna
at the input. Can be remotely powered to and through the input.
Packed with a PSK06 power supply
VHF 44-230MHz gain 26-28dB with 10dB attenuator adjustment
UHF 470-860MHz gain 32dB with 10dB attenuator adjustment
Current drain 150mA, Noise Figure < 3.5dB
Output level 112dBuV to DIN45004B standard.
