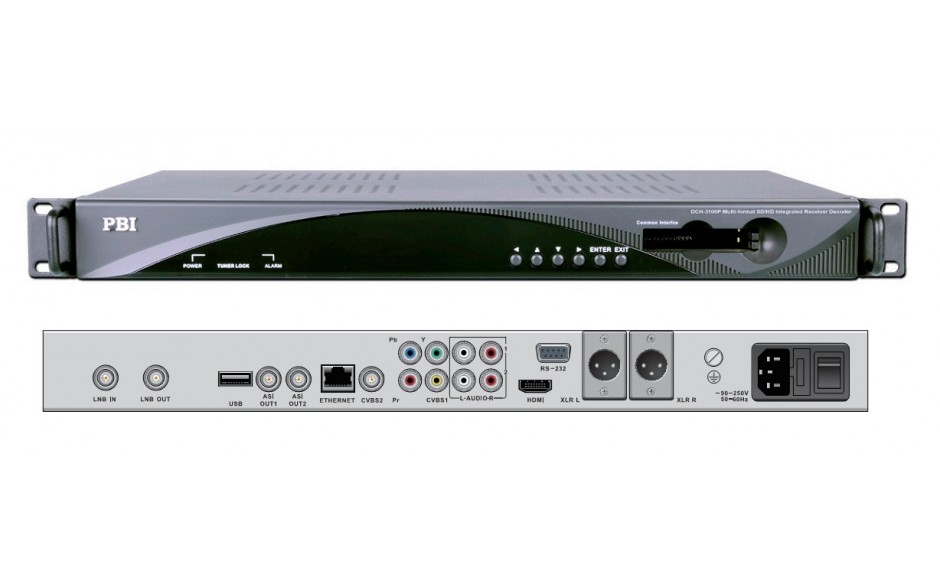

Main Features
* 2x DVB-CI Slots, Multi Programs, BISS-1 and BISS-E decryption
* Transport stream output from ASI
* Input from Tuner or IP source
* SD/HD MPEG-2 and MPEG-4/H.264 digital video decoding
* Two digital audio channel decoding of MPEG1 Layer II and AAC
* Rich Analogue and Digital Outputs including, CVBS, YPbPr, HDMI, XLR
* Remote Control and Supervision by SNMP, HTTP WEB and
Proprietary HDMS software
* Dynamic PMT auto detection and updating
* Supports VBI TELETEXT, EBU/ DVB Subtitle, Closed Caption
* Configuration save and load after power off

DVB-S2 Tuner Input
Connector Type: 1 x F type female 75 ohm for Input,
1 x F type female 75 ohm for loop through output
Input Frequency: 950-1750MHz.
Input Level: -20 ~ -70dBm (Quasi Error Free, QEF)
Constellation: DVB-S/S2: QPSK/8PSK
Symbol Rate 2-45 MS/sec
FEC Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Input Return Loss: 7dB (typ.)

ASI Output
Connector type: 2 x BNC Female, 75 ohm
Standard DVB-ASI, EN50083-9

HDMI Output
Standard: HDMI 1 x HDMI 1.3 interface (no 1080p)
Video Resolution: 1080i x 30, 1080i x 29.97, 1080i x 25,
720p x 60, 720p x 59.94,720p x 50, 480p x 60, 576p x 50,
576i x 25, 480i x 29.97
Audio: Embedded one or two digital audio pass through

Digital Video Processing
Video Standard: MPEG-2(MP@ ML for SD,MP@HL for HD)
MPEG 4/H.264 AVC Part 10 (MP@L3 for SD, HP@L4.1 for HD)
Video PID Bit Rate: < 80Mb/s

Digital Audio Processing
Number of Outputs: 2 x digital audio PIDs are decoded*
Sampling Rate: 32, 44.1 and 48KHz
Audio Bit Rate 32, 64, 96, 128, 160, 192, 224,
256, 288, 320, 352, 384, 416 and 448 kb/s for MPEG-1 Layer I
32, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256,
320 and 384 kb/s for MPEG1Layer II

Analogue Video Output
YPbPr Connector: 1 set of RCA, 75 ohm
CVBS Connector: 1 x BNC 75 ohm , 1 x RCA 75 ohm
Video Standard: NTSC, PAL, and SECAM
YPbPr Resolution: 1080i x 30, 1080i x 29.97,
1080i x 25, 720p x 60, 720p x 59.94, 720p x 50,
480p x 60, 576p x 50, 576i x 25, 480i x 29.97
Signal Level: I.0 Vp-p +/- 5%
Frequency Response < +/- I dB, at 5.5 MHz for PAL/SECAM,
4.2MHz for NTSC and 15MHz for HD YPbPr
Chroma-Luma Delay: < +/- 30 ns
Field Time Distortion: <2%
Line Time Distortion: <1%
Short Time Distortion: <2%
Differential Gain: <3%
Differential Phase: <2 deg
Signal to Noise Ratio:>55 dB (luminance weighted)

Analogue Audio Output
Connector type: 1 x XLR Male Socket,
2 pairs of RCA audio Output Impedance 600 ohm (balanced)
Output mode: Left, Right, Dual Mono, Stereo
Number of Outputs: 2 pairs of stereo audio outputs
(2 Audio PIDs are decoded).

Baseband Data Output
Subtitle: DVB/EBU VBI Teletext, WSS, VFD,
VPS Closed Caption EIA 608, EIA 708, EIA 608-to-708

Control & Monitoring
Connector Type: 1 x RJ-45, 10/100 Base-T for equipment
IP Control Remote Control SNMP, HTTP Web, Proprietary
HDMS Network System Management Software
Local Control: LCD display and 6-key keypad
Serial Port: 1 x RS-232 9-pin D-sub, for debug use only
Equipment Upgrade: FTP loader or USB

Physical
Dimension: 44mm x 483mm x 255mm
Weight :2.5Kg Net, 4.5Kg Gross
Power Supply: AC 90V ~ 250V, 50/60Hz
Power Consumption: 24W
Operating temperature: 0 ~ 45 ℃
Storage temperature: -10 ~ 60 ℃
Operating Humidity: 10 ~ 90%, non-condensed

Certifications
EMC: EN 55024:1998+A1:2001+A2:2003,
EN 55022:2006+A1:2007, EN 61000-3-2:2006,
EN 61000-3-3:2008 FCC : Part 15 Class B
LVD : EN 60950-1:2006 + A11:2009
