ClearView IGPW24-8 DVBT2 to IP Gateway

Details

Product Overview

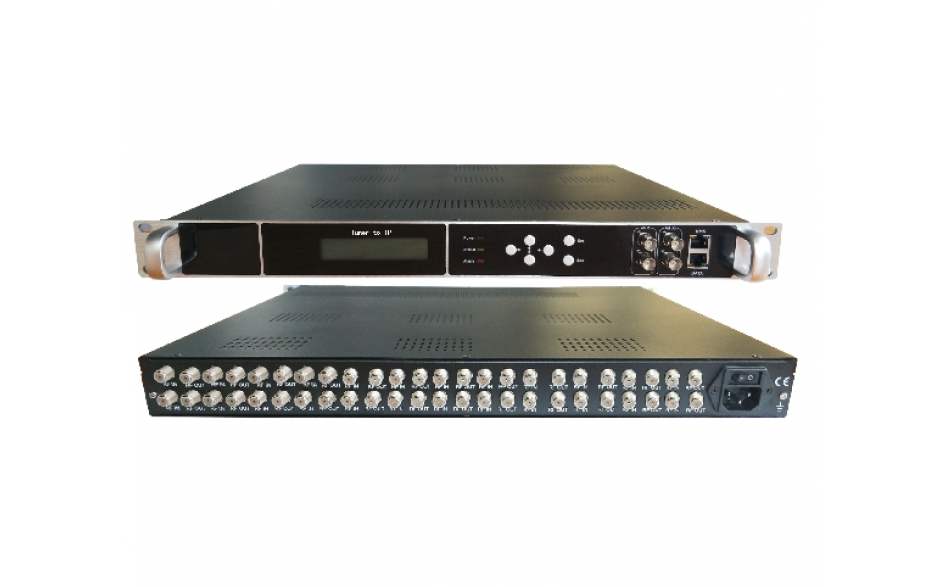

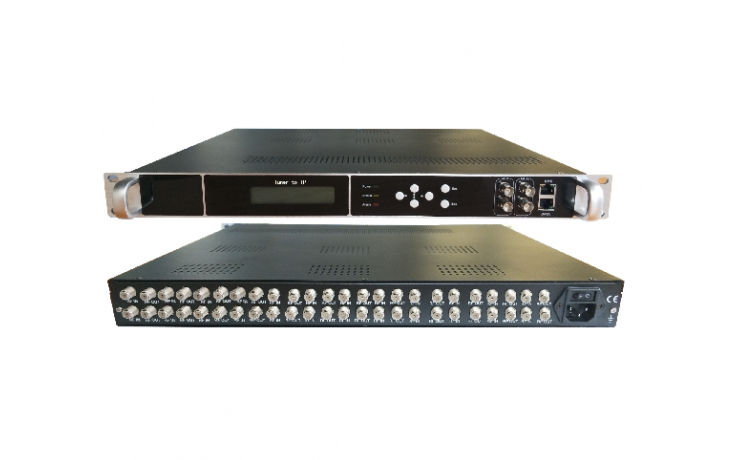

IGPW24-8  is a professional high integration device which includes tuner demodulation,
multiplexing, and modulation. It supports 8 DVBT/T2 inputs,  It has a 1000M IP output,
4 MPTS outputs and 512 SPTS outputs。It is high integrated and a cost-effective design
and can be used in cable TV digital head-ends and digital TV broadcasting..

Key Features

8 input DVBT/T2 tuner.
1000M IP output over UDP or RTP protocol (MPTS and SPTS)
2 ASI inputs
2 ASI Independent output (optional) as copy of 1MPTS
Supports “Null PKT Filter” function
Supports PID Remapping/ PCR accurate adjustinPID pass
LCD, Front panel key function
Control via web management, and easy updates via web

Technical Specification

 Input

 8 x DVBT/T2 Tuners

 2 ASI inputs

 Output

 2 ASI output (Optional)

 IP output(512 SPTS and 4 MPTS)IP output over UDP and RTP protocol

 Multiplexing

 Maximum PID  Remapping

 180 output PID per channel

 Function

 PID remapping (automatically or manually)

 Accurate PCR adjusting

 System function

 Network management (WEB)

 Chinese and English language

 Ethernet software upgrade

 Miscellaneous

 Dimension(W×L×H)

 550mm×515mm×140mm

 Weight

 6kg

 Environment

 0 to 45℃(work);-20 to 80℃(storage)

 Power requirements

 AC100 to 240V,50/60Hz




Availability: In stock

$2,420.00
