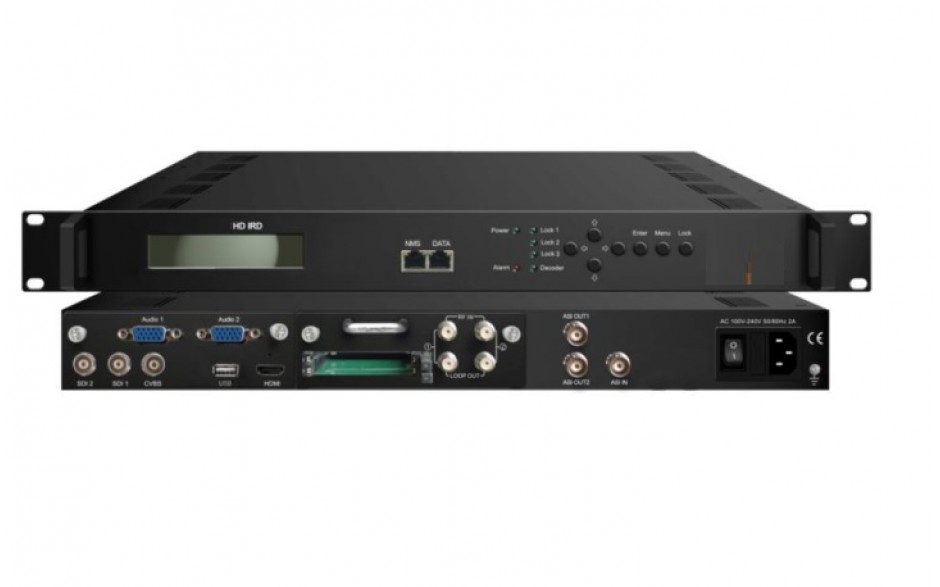

KR397C HD IRD is ClearViews’s new HEVC device. It can receives signals from
two DVBS2 tuners. After demodulating, de-scrambling, re-multiplexing and decoding,
it provides content out through various video/audio interfaces. Video/audio outputs
include HDMI, CVBS, SDI, BNC, XLR interface and SPDIF.
It has two CI slots and BISS modules can descramble the programs from tuners, ASI and IP inputs.
The KR397C is equipped with ASI and IP input ports for re-mux, and outputs include 2 ASI ports
and an IP port.
Key Features
Demodulator + descrambler +re-mux+ decoder modules in one box
2 DVBS2 Tuners
1 ASI & 1 IP (UDP) input for re-mux
Each CAM/CI Slot can decrypt multiple programs from Tuners/ASI/IP
BISS descrambling (Up to 120Mbps)
Supports 4:2:0 HD/SD MPEG2, MPEG4 AVC/H.264 and HEVC/ H.265 decoding
Supports MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital
Plus decoding and AC3 passthrough
Two Stereo audio (SDI interface) out
P (1 MPTS & 8 SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out
Supports CC (EIA608, EIA708) & Teletext (Only for SDI)
Supports maximum 128 PID mapping per input
LCD/Keyboard and web-based NMS management
Updates via web
Specifications
Input
2 x Tuner, F type connector
1 x ASI input for re-mux, BNC interface
1 x IP input for re-mux (UDP)
Tuners
DVB-S
Input Frequency: 950 to 2150MHz
Symbol rate: 1 to 45 Msps
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Constellation: QPSK
Signal Strength: - 65 to -25dBm
Max input bitrate up to120 Mbps
DVB-S2
Input Frequency: 950 to 2150MHz
Symbol rate: 1 to 45 Msps
FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation: QPSK, 8PSK
Max input bitrate up to 120 Mbps
Descrambling: CAM/CI slot Qty 2
BISS Mode: Mode 1, Mode E (up to 120Mbps)
Output
IP (1 x MPTS & 8 x SPTS) out over UDP, RTP/RTSP 100Base-T Ethernet interface (unicast / multicast)
2 x ASI mirrored out, BNC interface
Video
Interface: CVBS/HDMI/SDI
Number of channels: 1
Decoding: 4:2:0 MPEG-2, MPEG4 AVC/H.264 and HEVC/ H.265
Resolution:1920x1080_60p, 1920x1080_60i,1920x1080_50p; 1920x1080_50i; 1280x720_60P, 1280x720_50P; 480i, 576i
Audio
Interface: HDMI, SDI, SPDIF, BNC, XLR, AES
Number of channels: 1 or 2 for option
Decoding: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus
Audio Output Mode: Left, Right, Stereo
Stereo audio x 2 (SDI only)
System
Local interface: LCD + control buttons
Remote management: Webserver Management
Language: English
Upgrade: USB, web management
General
Dimensions: 482 x 300 x 44.5mm (W×L×H)
Weight 4kg
Environment: 0 to 4 deg C(work);-20 to 80 deg C(Storage)
Power requirements 100 to 240VAC, 50/60Hz
Power consumption 20W
