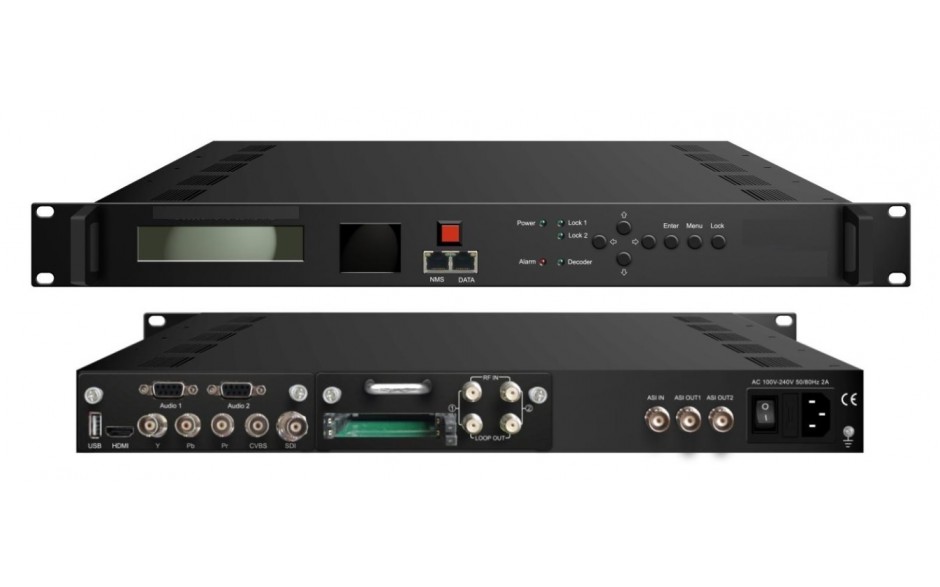

The KR356H DVB-S2 HD IRD is ClearViews’s all in-one IRD which integrates demodulation,
de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video
(CVBS/YPbPr/HDMI/SDI) output.s.
It is a 1RU case which supports 2 tuner inputs to receive signal from satellites. 2 CI slots
and BISS are included. CI modules can be inserted to descramble programs from encrypted RF,
ASI and IP.input ports.
User Manual Here
Key Features
* Demodulation & descrambler & re-mux&decoder in one unit
* 2 DVBS/S2 Tuner inputs
* 1 ASI & 1 IP (UDP) input for re-mux
* 2 x CI slots with CAM inseted can decrypt multiple programs from Tuners/ASI/IP
* Supports BISS descrambling (Up to 120Mbps)
* One channel video output with various interface option (MPEG2/H.264)
* Dual stereo audio output, or one DD 5.1 channel output
* Supports Dolby Digital AC3 Decoding and passthrough
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output, ASI out
* Supports CC, Subtitle and Teletext
* Supports a maximum 128 PID mapping per input
* LCD display, NMS management vis WEB GUI,
* Updates via web
Specifications
Input
2xDVBS/S2 RF, F type
1×ASI input for re-mux, BNC interface
1xIP input for re-mux (UDP)
Demodulating Section
DVB-S Input Frequency 950-2150MHz
Symbol rate 2-45Msps
Signal Strength - 65- -25dBm
Constellation 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2 Input Frequency 950-2150MHz
Symbol rate QPSK 1~45Mbauds;
8PSK 2~30Mbauds
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6,
8/9, 9/10
Constellation QPSK, 8PSK
Descrambling
2 x CI slots
BISS Mode, Mode 1, Mode E; up to 120Mbps
Output
IP Output
1xMPTS & 8xSPTS over UDP, RTP/RTSP.
100Base-T Ethernet interface (unicast/multicast)
ASI Output
2×ASI BNC interface, mirrored out
Decoder Output Video Interface
1xCVBS/YPbPr/HDMI/SDI
Resolution: 480i, 480p, 576i, 576p,
720p, 1080i, 1080p
Video Decoding: MPEG-2, H.264
Audio Interface
2 x Stereo/4xmono, HDMI, SDI
Audio Decoding: MPEG 1 Layer II,
LC-AAC, HE-AAC, Dolby Digital AC3
Audio Output Mode: Left, Right, Stereo, 5.1 CH
System
Local Interface: LCD & control buttons
Remote management: NMS vis WEB GUI
General
Power supply AC 100V to 240V
Dimensions 482x300x44.5mm
Weight 3.5 kgs
Operating temperature 0 to 45 degrees C
