Description

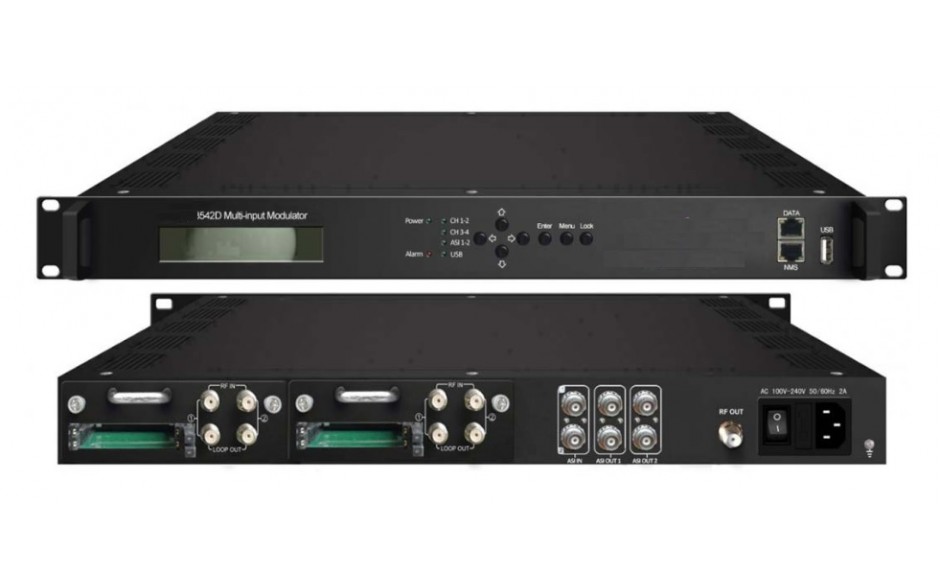

The KR3542D is a 1-U case which has 4 tuner inputs to receive signal from satellite,
These signals are multiplexed, descrambled and remodulated to 2 x DVBT carriers.
or 4 x QAM carriers as an option.
The KR3542D is also equipped with 2 ASI input, and output with 2 groups separate
ASI ports and 2 MPTS UDP IP ports.
The output DVBT modulated signals are to be received by TVs, STB etc..
QAM signals can be received by cable receivers.
The USB port is designed to record encoded video (TS) and save it in ts files in the
USB Keys or Hard Disks, and then the ts files can be playback through the USB port.
The four CAMs/CIs accompanied and BISS modules can descramble the programs input
from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of
modules (demodulator) as needed.
Highlights
Supports 4 DVB-S2 Tuners and 2 ASI input ports
Accurate PCR adjusting
PSI/SI editing and inserting
PID Remapping
Excellent RF output performance index, MER>40db
2 x DVB-T RF out or 4 x DVB-C out. (This needs to be specified when ordering)
2 separate ASI&IP (2 x MPTS over UDP) mirror 2 RF output
4 CAMs can decrypt multiple programs from the 4 Tuner inputs
Supports BISS descrambling
Record encoded TS and playback TS files (*.ts) through USB port
LCD display and keyboard
Web management, Updates via web and USB
Technical Specifications
Input- 4 DVBS2 Tuners and 2 ASI input
Input Frequency- 950-2150MHz (DVBS2 model)
Tuner Section
DVB-S2
Symbol rate 2-45Msps
Signal Strength -65~-25dBm
FEC Demodulation 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
Input Frequency 950-2150MHz
Symbol rate
QPSK 1~45Mbauds
8PSK 2~30Mbauds
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation Mode QPSK, 8PSK
Maximum PID Remapping- 128per input channel
Multiplexing Function
Modulation
DVB-T Version
PID remapping (automatically or manually)
Accurate PCR adjusting
Generate PSI/SI table automatically
Bandwidth- 6M, 7M, 8M
Constellation- QPSK, 16QAM, 64QAM
Code rate- 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval- 1/32, 1/16, 1/8, 1/4
Transmission Mode- 2K, 8K
MER ≥40dB
RF frequency- 30~999MHz, 1KHz step
RF Out- 2*DVB-T carriers output
RF output level- -20~0dbm(87 to 107 dbµV) in 0.1db steps
Local interface LCD + control buttons
System Remote Web NMS General management
2 ASI out(BNC type)
DVB-C Version
Standard J.83A(DVB-C), J.83B, J.83C
MER >40dB
RF frequency 30 to 999MHz, 1KHz steps
RF output level -20~0dbm(87 to 107 dbµV),0.1db step
Symbol rate 5.0Msps to 9.0Msps, 1ksps steps
RF Out 4 x DVB-C carriers
J.83A Constellation 16/32/64/128/256QAM Bandwidth 8M
J.83B Constellation 64/256 QAM Bandwidth 6M
J.83C Constellation 64/256 QAM Bandwidth 6M
Stream Out
IP (2 x MPTS over UDP) out (RJ45, 1000M)
General
Language- English and Chinese
Upgrading Web and USB
Dimensions- 482mm×300mm×44.5mm(WxDxH)
Weight- 4kg
Temperature- 0 to 45c (Operating) ; -20 to 80c (Storage)
Power AC 100V,50/60Hz; AC 240V, 50/60HZ
Consumption- 25W
