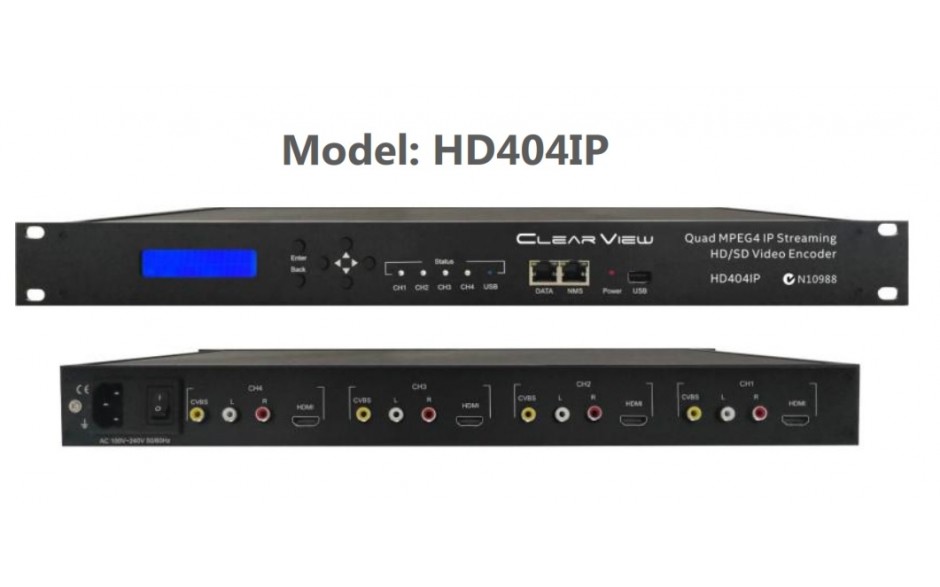

ClearView HD404IP MPEG4, 4 HDMI and 4 x CVBS to IP Streamer

Details

Features

4 x HDMI inputs;
4 x CVBS inputs
1 x USB
1 x RJ45, 1Gbps IP Streaming,
Protocols: UDP/RTP(Unicast/Multicast)/HLS, RTMP, HTTP
4 MPTS and 4 SPTS out;
LCD with 6 keys & 1 x RJ45 (Web NMS);
Supports online upgrade.

Specifications

Video Encoding
Format
H.264 AVC/HP@L4.0
Resolution
Input: 1080 50/60p, 1080 50/60i, 720 50/60p, 480i, 576i
Output: up to 1080 30p
Bitrate
HDMI: 2~14Mbps
CVBS: 2~6Mbps
Rate Control
CBR/VBR
Chroma Sample
4:2:0, 4:2:2
GOP Structure
IBBP
Audio Encoding Format
Mpeg1L2, AAC
Bitrate
64 - 384Kbps
Sample Rate
44.1KHz, 48.0KHz
General
Power Supply
AC 100-240V 50/60Hz
Display
LCD panel @ 2 x 16 characters
LED X5 (Ch1-4+USB)
Dimension
483 x 257 x 44.4mm
Weight
2400g
Environmental
Operating Temperature: 5°C- 40°C
Relative Humidity: 80% @ 30°C

Availability: In stock

Regular Price: $1,990.00

Special Price $1,690.00
