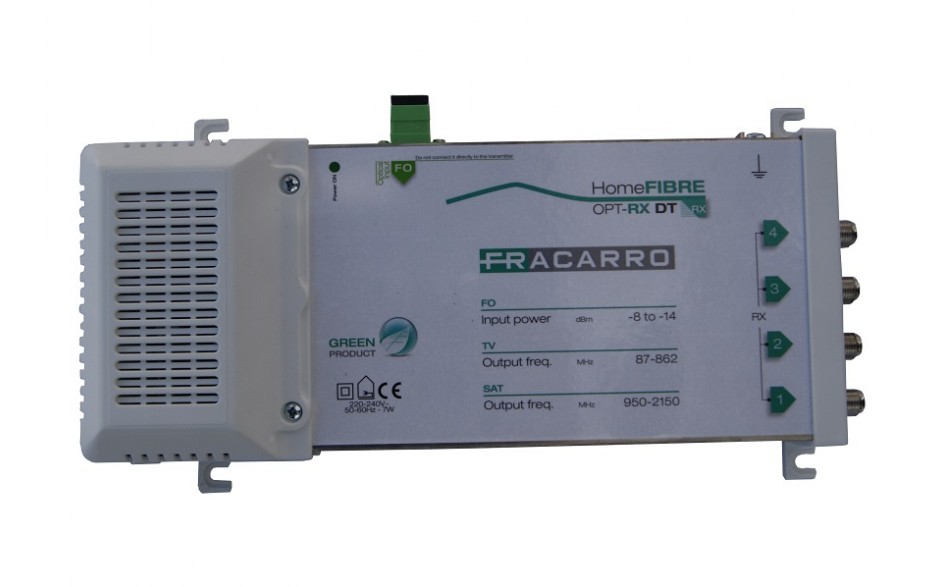

Fraccarro OPT-RX DT Fibre Receiver
Use with OPT-TX DT Fibre Transmitter
Has a single SC/APC optical input.
Any of the 4 satellite inputs on the OPT-TX unit
can be selected from any of the 4 RF outputs on this unit
4 Satellite inputs are selected as follows-
Input1 Black colour on TX unit is selected with 13V 22KHz off
Input2 Green colour on TX unit is selected with 18V 22KHz off
Input3 Red colour on TX unit is selected with 13V 22KHz on
Input4 Yellow colour on TX unit is selected with 18V 22KHz on
Input5 White colour on TX unit is the Terrestrial signal
This terrestrial signal is diplexed with the satellite
signals and is available at all outlets.
It can be separated with a terrestrial/satellite
Combiner/Separator.

Use the SC/APC to Mini Apapter to adapt the
output to the pre-made lengths of 3mm Patch cord.
PR003 3 metre length, PR005 5 metre length,
PR010 10 metre length and PR100 100 metre length.

Fibre System Advantages
Only one fibre carries all signals
(SAT and DVBT)
Low power consumption: Low environmental impact
Immune to electromagnetic interference
Pre-terminated cables eliminate splicing costs
Up to 24dB of Optical Budget
Short fibre runs will need a 10dB optical attenuator
inserted in line.

Specifications

Input
Optical Input: 1 SC/APC
Optical Wavelength: 1310 nM
Optical Power Min to Max: -8 to -14dBm
Optical Return Loss: >45dB
Output
RF Combined: 4 Satellite Channels via Multiswitch
& 1 Terrestrial on each of 4 F connector outputs
950 to 2150MHz and 87 to 862MHz on each output
Output Return Loss: 10dB
RF Output Level: with -14dbM Optical Input:
77dBuV for TV, 66dBuV for Satellite +/- 5dBuV
General
Mains Power: 184 to 264V 50/60Hz
Power Consumption 7 Watts
Operating Temperature: -5 to 50 degrees C
Dimensions: 250 x 125 x 50mm
Weight: 2Kg
