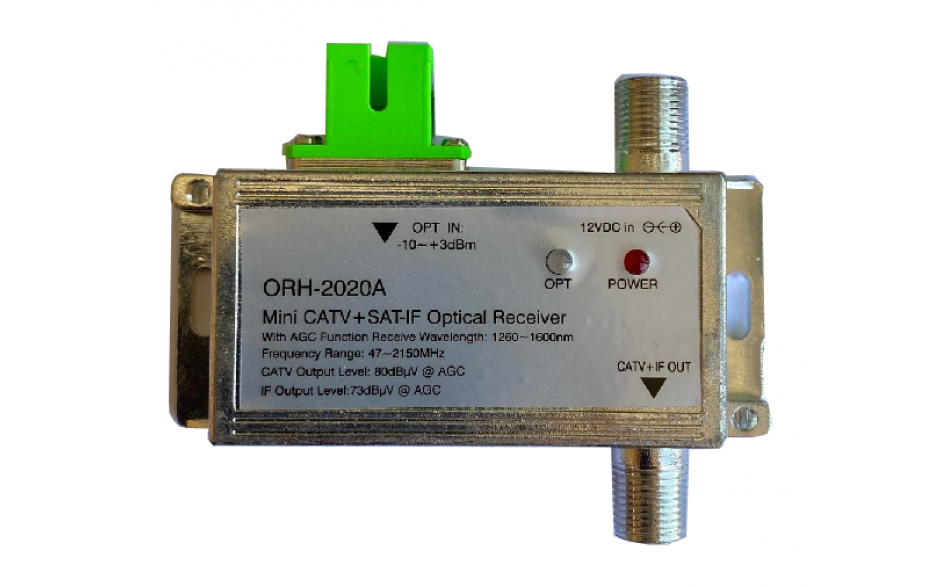

ClearView OHR2020A Wideband Optical to RF Receiver 47-2150MHz


1. Designed for FTTH(Fiber To The Home) networks
2.Wide operating frequency range,47-2150MHz
3. Excellent linearity and flatness
4. Wide range of optical input power
5. Single-mode fiber high return loss
6. Using GaAs amplifier active devices
7. Ultra low noise technology
8. Small size and easier installation
9. Red-LED for power indication
10. Double color LED for optical power indication
(Non-lit: optical power<-10dBm,Green:-10dBm
Red:optical power>+3dBm)
ORH-2020A is with AGC function,

RF Connector: F-female
Optical Connector: SC/APC
Power Supply: F-female
Responsivity: 0.9A/W
Input Optical Power:  -10 +3dBm no AGC
-7 +2dBm with AGC
Optical Return Loss: >45dB
Receive  Wavelength: 1260 to 1600nm
Optical Fiber Type: Single Mode
RF Frequency Range: 47-2150MHz
CATV Flatness: +/- 0.75dB
CATV Output Level: 80dBuV
CNR: > 50dB @ -1dBm input power
CSO: > 62dB
CTB: > 65dB
Return Loss >14dB
AGC Stability: +/- 1dB
Output Impedance: 75 ohm
SAT-IF Flatness: +/- 1.5dB
SAT-IF Output Level:  -40dBm

Power Supply: 12V
Power Consumption:4W
Dimensions: 75 x 63 x 17mm

Availability: In stock
