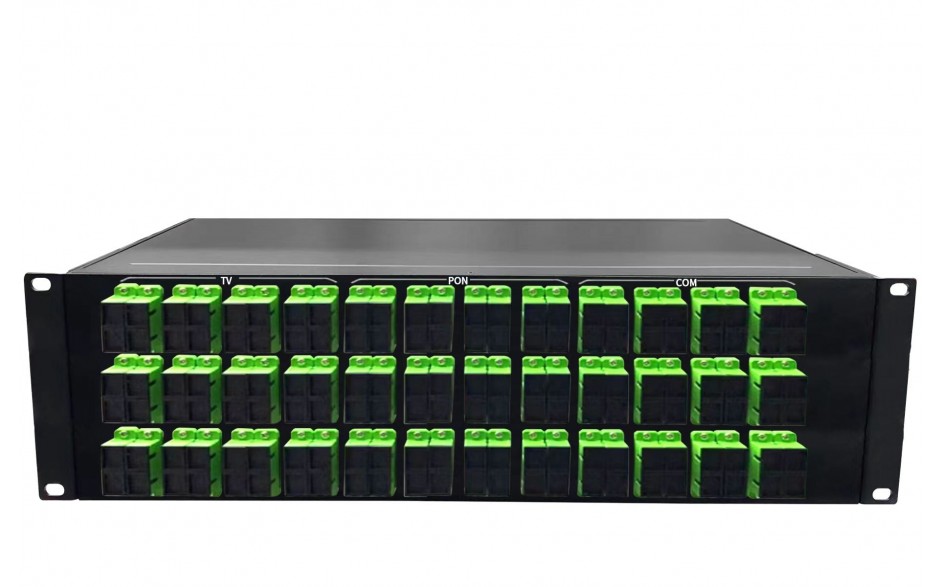

WDM64- 64 port XGSPON/GPON and CATV Optical Mixer

Features

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1310/1490/1270/1577/1550nm
Wide Operating Temperature: -40 to 85°C
3RU 19 inch rack mount
Delivery 35 days from order

Applications

¨         CWDM System

¨         PON Networks

¨         CATV links

Specifications:
Model- 1310/1490 & 1270/1577+1550WDM
Transmitted Band: - 1550nm (1539-1565) for CATV
Reflected Band- 1310/1490 for GPON/EPON, 1270/1577 for XGS-PON    nm
Maximum Passband Insertion Loss- < 0.6dB
Reflected band Insertion Loss- < 0.5 dB
Isolation in Transmission- > 30dB
Isolation in Reflection- >15dB
PDL- < 0.1    dB
PMD- < 0.1ps
Return Loss- > 50dB
Directivity- > 55dB
Operating Temperature- -5 to 70 degrees C
Storage Temperature- -40 to 85 degrees C
Fibre type- SMF 28-e  0.9mm 1m
Connectors-
CATV-1550: SC/APC, COM: SC/APC,
PON- (GPON+XGSPON): SC/APC or SC/UPC
