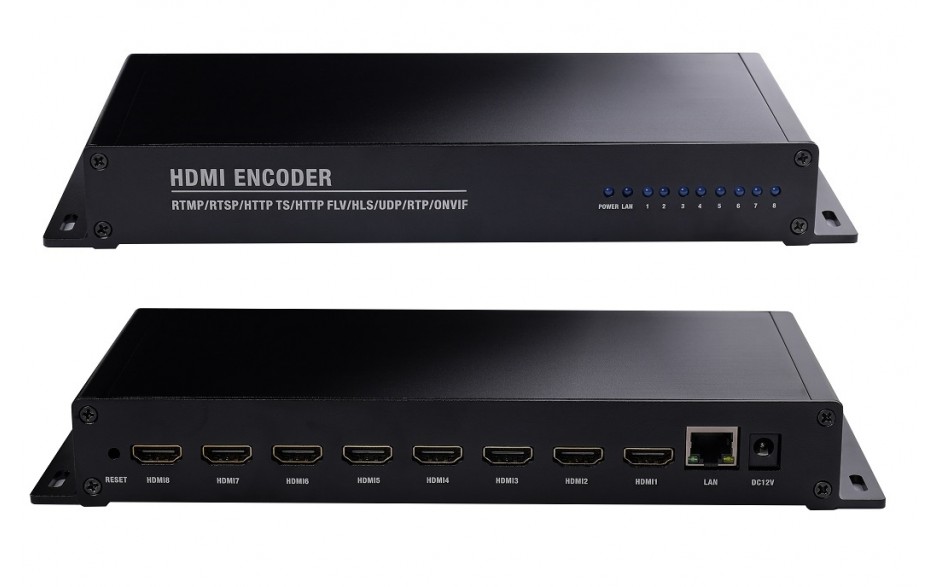

HD818IP H.265 Streaming Encoder,
8-HDMI Port input. It outputs 4 channels streams, AAC ,AC3, Mpeg1layerII, MP3 Compression
(audio) with different resolutions and protocols for delivering services to multiple Internet
connected devices at the same time, including smart phones, tablets, different size TVs
and other mobile device. With powerful video pre-compression and efficient adaptive video
compression algorithm, it is able to provide clear-delicate, high quality video even at lower
bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT,
conference, remote education, news interview, court, public security, banking, transportation
and other industry applications.
Features
* Supports 8 channels HDMI input
* Supports up to 4 TS over IP streams out.
* Supports H.264 Main Profile/H.264 High Profile /H.264 baseline/H.265/Hevc
* Bitrate mode: CBR/VBR
* Capable of image parameter settings
* Switchable of audio output mode: Left, right and Stereo
* Configurable of Multi-rate, Multi-resolution, Multi-protocol
* Providing RTSP/HTTP/UDP/HLS or RTMP protocol
* Support HDCP protocol
* Support ONVIF Network Video Protocol
* Support multiple equipments display at the same time on a computer
* System supports WINDOWS XP/VISTA/SERVER2008/WIN7 32 and WIN7 64, LINUX
* Web-based management
* Full-duplex mode 1000M
Specifications
VIDEO SPECIFICATIONS
* Video compression: H.264 Main Profile/H.264 High Profile /H.264 baseline/H.265/Hevc
* Video inputs: HDMI(support HDCP protocol)
Resolution:
* Main stream:1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,
720x480, 720x404,704x576,640x480,640x360,auto
Sub-stream1:
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,
640x300,352X288,320X240,320X180 auto
Sub-stream2:
NTSC: 720X480, 640X480
PAL: 720X576, 704X576
Sub-stream3:
NTSC: 320X240
PAL: 352X288
* Bit-rate: 16kbps~12Mbps, CBR/VBR
* Video pre-processing: Noise reduction, Sharpen, Filtering
AUDIO SPECIFICATIONS
* Audio compression: AAC ,AC3,Mpeg1layerII,MP3
* Sampling rate: Adaptive, selectable of re-sample.
* Sampling accuracy: 24-bit
* Bit Rate: 48000,64000,96000,128000,160000,192000,256000
* Re-sample:32000,44100
OUTPUTS
IP output
* Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS or RTMP protocol
* For HDMI to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP/HLS or RTMP protocol)
2Channels with higher resolution(up to 1080P) for large screen application, 2 channels with
lower resolution(up to 720P) for small screen application)
* Connector: RJ45, 1000M
GENERAL OPTIONS
System
* Configuration Interface: Web-based
* Upgraded: via network
* Connector: RJ45, 100M Ethernet interface.
PHYSICAL AND POWER
* Voltage: 12V DC
* Consumption: 5W
* Operating temperature: 0 to 50°C
* Dimensions: 144mm(W) x 98mm(D) x 38mm(H)
* Weight: 350 grams
