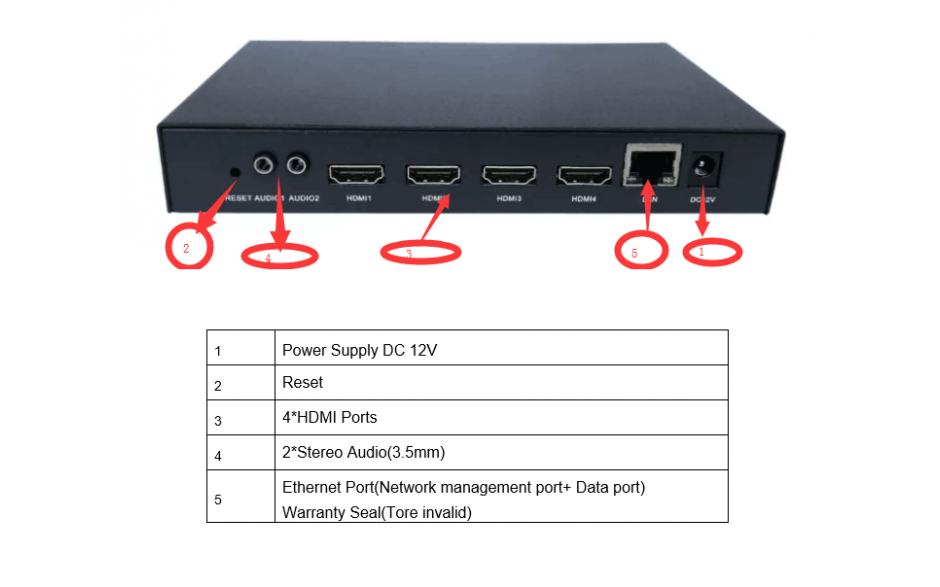

HD414IP H.264 ProVideo Streaming Encoder, 4-HDMI Ports in

Details

HD414IP H.264 ProVideo Streaming Encoder,  4-HDMI Port input Meanwhile, it outputs 4 channels stream
by TS over IP transmission in H.264 Compression (Video), AAC ,AC3,Mpeg1layerII,MP3 Compression (audio)
with different resolutions and protocols for delivering services to multiple Internet connected devices at the
same time, including smart phones, tablets, different size TVs and other mobile device. With powerful video
pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high
quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT.

Features

Supports 4 channels HDMI input
Supports up to 4 TS over IP streams out.
Supports H.264 Main Profile/H.264 High Profile /H.264
Bitrate mode: CBR/VBR
Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing RTSP/HTTP/UDP/HLS or RTMP protocol
Supports HDCP protocol
Supports ONVIF Network Video Protocol
Supports multiple equipments display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management
Full-duplex mode 1000M

Specifications

VIDEO SPECIFICATIONS

Video compression: H.264 Main Profile/H.264 High Profile /H.264

Video inputs: HDMI(support HDCP protocol)

Resolution:

Main stream:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,

720x404,704x576,640x480,640x360,auto

Sub-stream1:

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,

640x300,352X288,320X240,320X180 auto

Sub-stream2:

NTSC: 720X480, 640X480

PAL: 720X576, 704X576

Sub-stream3:

NTSC: 320X240

PAL: 352X288

l  Bit-rate: 16kbps~12Mbps, CBR/VBR

l  Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO SPECIFICATIONS

Audio compression: AAC ,AC3,Mpeg1layerII,MP3

Sampling rate: Adaptive, selectable of re-sample.

Sampling accuracy: 24-bit

Bit Rate: 48000,64000,96000,128000,160000,192000,256000

Re-sample:32000,44100

OUTPUTS

IP output

Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS or RTMP protocol

 For HDMI to IP output, 4 x TS over IP stream out (HTTP/RTSP/UDP/HLS or RTMP protocol) 2

Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)

Connector: RJ45, 1000M

GENERAL OPTIONS

System

Configuration Interface: Web-based

Upgraded: via network

Connector: RJ45, 100M Ethernet interface.

PHYSICAL AND POWER

Voltage: 12V DC

Consumption: 5W

Operating temperature: 0~50°C

Dimensions: 144mm(W)*98mm(D)*38mm(H)

Weight: 0.6Kg/pc

Availability: In stock

$1,320.00
