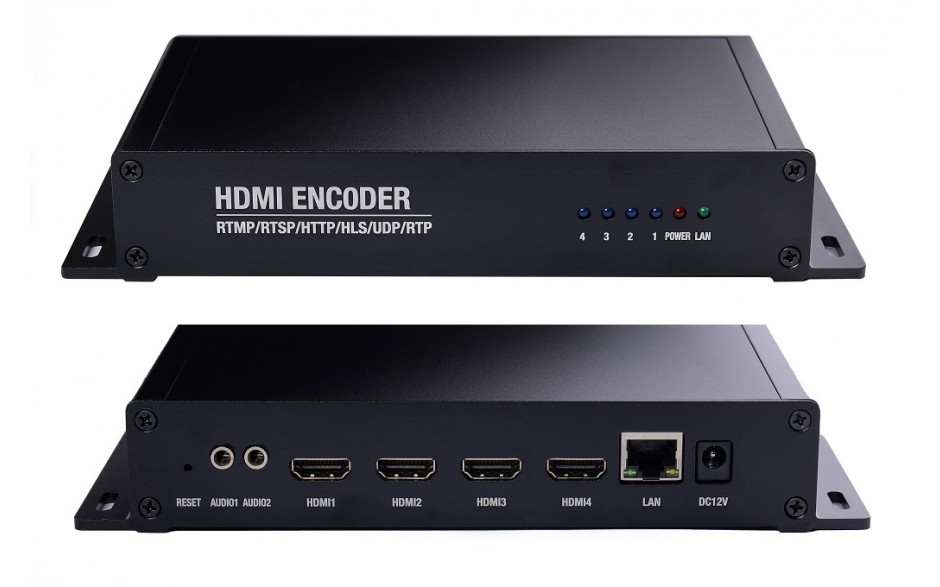

HD414IP H.264/265 Streaming Encoder, 4-HDMI Port input Meanwhile, it outputs 4 channels stream
by TS over IP transmission in H.264 Compression (Video), AAC ,AC3,Mpeg1layerII,MP3 Compression (audio)
with different resolutions and protocols for delivering services to multiple Internet connected devices at the
same time, including smart phones, tablets, different size TVs and other mobile device. With powerful video
pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high
quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT.
Features
Supports 4 channels HDMI input
Supports up to 4 TS over IP streams out.
Support H.264 Main Profile/H.264 High Profile /H.264 baseline/H.265/Hevc
Bitrate mode: CBR/VBR
Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing RTSP/HTTP/UDP/HLS or RTMP protocol
Supports HDCP protocol
Supports ONVIF Network Video Protocol
Supports multiple equipments display at the same time on a computer
System supports WINDOWS XP/VISTA/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management
Full-duplex mode 1000M
Specifications
VIDEO SPECIFICATIONS
Video compression: H.264 Main Profile/H.264 High Profile /H.264 baseline/H.265/Hevc
Video inputs: HDMI(support HDCP protocol)
Resolution:
Main stream:
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,
720x404,704x576,640x480,640x360,auto
Sub-stream1:
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,
640x300,352X288,320X240,320X180 auto
Sub-stream2:
NTSC: 720X480, 640X480
PAL: 720X576, 704X576
Sub-stream3:
NTSC: 320X240
PAL: 352X288
lBit-rate: 16kbps~12Mbps, CBR/VBR
Video pre-processing: Noise reduction, Sharpen, Filtering
AUDIO SPECIFICATIONS
Audio compression: AAC ,AC3,Mpeg1layerII,MP3
Sampling rate: Adaptive, selectable of re-sample.
Sampling accuracy: 24-bit
Bit Rate: 48000,64000,96000,128000,160000,192000,256000
Re-sample:32000,44100
OUTPUTS
IP output
Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS or RTMP protocol
For HDMI to IP output, 4 x TS over IP stream out (HTTP/RTSP/UDP/HLS or RTMP protocol) 2
Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application)
Connector: RJ45, 1000M
GENERAL OPTIONS
System
Configuration Interface: Web-based
Upgraded: via network
Connector: RJ45, 100M Ethernet interface.
PHYSICAL AND POWER
Voltage: 12V DC
Consumption: 5W
Operating temperature: 0 to 50°C
Dimensions: 144mm(W) x 98mm(D) x 38mm(H)
Weight: 600 grams
