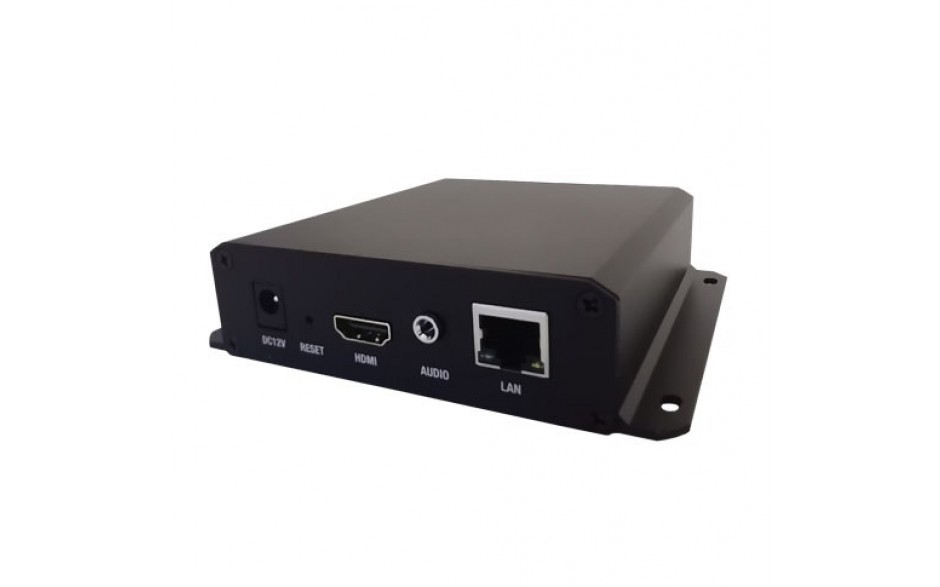

H.264 H.265 IPTV Streaming Encoder with high integration and cost-effective design makes
this device widely used in the variety of fields such as CATV digital head-end, hotel IPTV systems,
live streaming broadcasts, streaming media servers etc. The encoder works with the online live
broadcast platforms, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
Main Features
Video Input: 1 Channel HDMI
Video Compression: H.265/HEVC and H.264
Audio Compression: AAC,MP3,MP2,AC3,G.711
Supports 1 ch Audio Input
Supports AAC/G.711 Advanced Audio Coding format quality
1000M network interface uses full duplex mode
Mainstream and substream can be pushed to different servers.
Supports up to 4K@30 UHD video input and output.
Support image parameter settings
Provides HDCP protocol and Blu-ray
Provides SRT, HTTP, UTP, HLS, RTSP, RTMP, RTMPS, RTP, ON VIF protocol,
The mainstream and side stream use the different network protocol for transmission.
General
Power 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
Cooling Dual internal cooling fans with Front inlet and Sides exhaust
Fan dB level <20db Super Quiet Operation under normal conditions
Temperature/Humidity +32 F° to +115 F° (0 C° to +46 C°) / 10% to 80% non-condensing
MTBF 55,000 hours
Reliability 24/7 Operation Timen.
