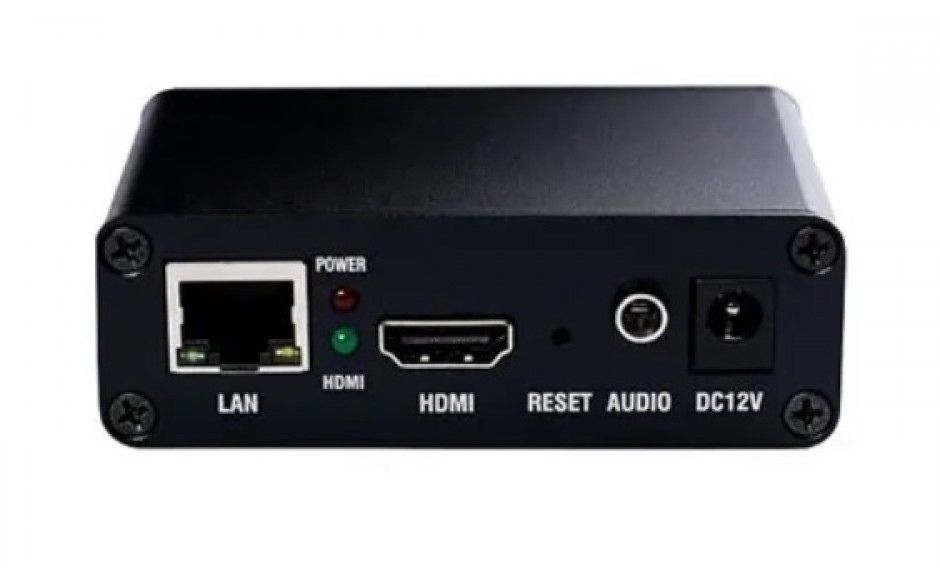

HEVC MPEG4 HDMI to IP Live Streaming Video Encoder H.264
RTMP Encoder HDMI Encoder IPTV H.265 with HLS HTTP RTSP UDP RTMPS SRT
INSTALLATION
Remote Control Via PC
Simple Setup Simple configuration via Login-Protected Web Interface
HDMI Inputs Licensed HDMI inputs compatible to any HDMI Video source
Multi-Units Multiple units can be used on the same network for more channels,
by simply configuring different IP Addresses per each machine
VIDEO INPUT
HDMI 1 HDMI input - compatible to any HDMI Video Source up to Full HD 1080p resolution
HDMI Version Compatible to any HDMI source including HDMI 2.0 (Max input resolutions 1080p 60 )
EDID Control Advanced EDID Auto control compatible with any HDMI Video source
Video Resolutions 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
(AUTO EDID or Selectable SCALER per channel )
Sub Resolutions and PC Resolutions are also supported on both HDMI Inputs and the Target Encoding
Frame Ratio 1 to 60 FPS selectable stream by stream
Aspect Ratios 16:9 / 4:3 / Film mode detection (3:2 pull-down)
AUDIO INPUT
HDMI AUDIO Any HDMI Embedded Digital Audio
VIDEO ENCODER
Encoder Video Profile - Selectable per each HDMI per each of the 4 Multi-rate sub stream
MPEG4 H.264/H.265 base profile / main profile / high profile - any level
Encoding Mode Interlace & Progressive encoding support
Video Processing Extensive video pre-processing help get the best picture whatever the source
Video Processing Extensive video pre-processing including Noise reduction and Resolution changing
Traffic Shaping Selectable Triple Motion Estimation Look-Ahead Statistical Variable Bitrate or Constant Bitrate
Video Encoding Data Rates VBR Variable, 64Kbps 15Mbps per channel
Color Profile 4:2:0 Broadcast Grade Sampling
GOP Size 15
AUDIO ENCODER
Channels 1 x stereo audio channel processing
Audio Formats - Dolby Digital(AC-3) - Encoding rates from 56 kbps to 640 kbps
MPEG-1 Layer II Audio Encoding Standard Encoding rates from 32 kbps to 384 kbps
AAC Advanced Audio Coding
MP3 Audio Encoding
TRANSPORT STREAM
PIDs Numbering Full Control to match any specific Network Provider or application Needs
Descriptors Full Control to set Programs Names / Network / Provider
CONTROL SET UP
NETWORK In-Band IP web remote control via secure login
AUTOMATION
Integration Compatible with any Automation, set channels numbers and names, auto-detects
formats & resolutions changes on the fly.The Automation controls the sources and the destination
TVs to select the channel to watch as there is no need to change the encoder settings at any time.
Easy To Install, Simple to Operate, Reliable, Cost-Effective, Real-Time with no maintenance
required.
GENERAL
Power 100-240 VAC 50/60 Hz, 60W max. 30W Typical IEC 60320-C14
Cooling Dual internal cooling fans with Front inlet and Sides exhaust
Fan dB level <20db Super Quiet Operation under normal conditions
Temperature/Humidity +32 F° to +115 F° (0 C° to +46 C°) / 10% to 80% non-condensing
MTBF 55,000 hours
Reliability 24/7 Operation Timen.
