Hardware Specifications
Model No.M805
CPU Amlogic S805 Quad Core ARM Cortex™-A5 up to 1.5GHz 28nm
GPU Quad Core Mali™-450MP GPU@600MHz+
FLASH 8GB NAND FLASH
SDRAM 1GB DDR3
Power Supply Specifications
Power Supply DC 5V/2A
Power Indicator (LED)
Working: blue; Standby: Red
Main Features
OS Android™ 4.4 KitKat
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov,
*.iso, *.mp4, *.rm and *.jpg file formats
Low Power MediaCPU with DSP Audio Processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and Programmable With 5.1
Down-mixing Built-in SPDIF/IEC958 And PCM Serial Digital Audio Input/Output
Supports Images HD JPEG BMP GIF PNG TIF
Supports Adobe™ Flash 11.1
2 x USB sockets
Card Interface Supports 4GB/8GB/16GB/32GB/64GB
English/French/German/Spanish/Italian/etc Multilateral Languages
RJ45 Ethernet:10/100M, Standard RJ-45
Built in WiFi, IEEE 802.11 a/b/g/n 2.4G
HDMI™ 1.4b 1200p@60 Max Resolution output, 3D HDMI Output
AV Out 480i/576i Standard Definition output
SPDIF Digital Audio
Video Formats
H.265 HEVC MP@L4.1 up to 1080P@60fps
H.264 HP@L5.1 up to 1080P@60fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
WebM up to VGA
Software Specifications
Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.
Apps can be downloaded Freely Form Android Market, Amazon app store etc.
Local Media playback, Supports HDD, U Disck , SD™/MMC Card.
Supports SKYPE video call, MSN, Facebook, Twitter, QQ etc.
Supports Email,office suit etc.
Supports DLNA function
Supports 2.4G wireless mouse/keyboard
Features:
Quad Core TV Box M805 can handle the latest Android games,
playback of 1080p HD movies and TV shows, streaming or
serving your media, browsing the web, video chat, and much more.

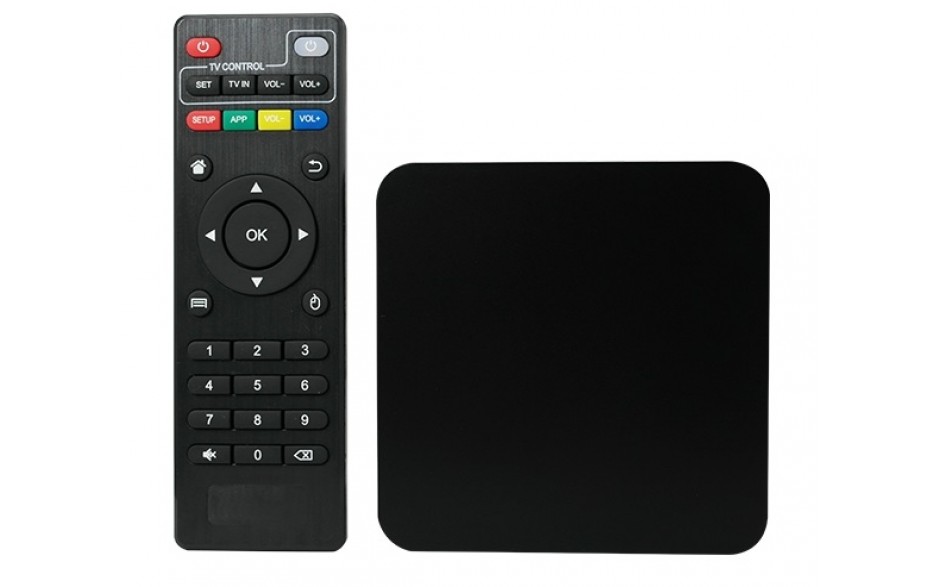

What's in the box ?
1 x Quad Core TV Box
1 x HDMI Cable
1 x Remote Control
1 x Power Adapter 110-40VAC 50/60Hz
1 x User Manual
General
Weight 600 grams
Size 102 x 102 x 16mm
