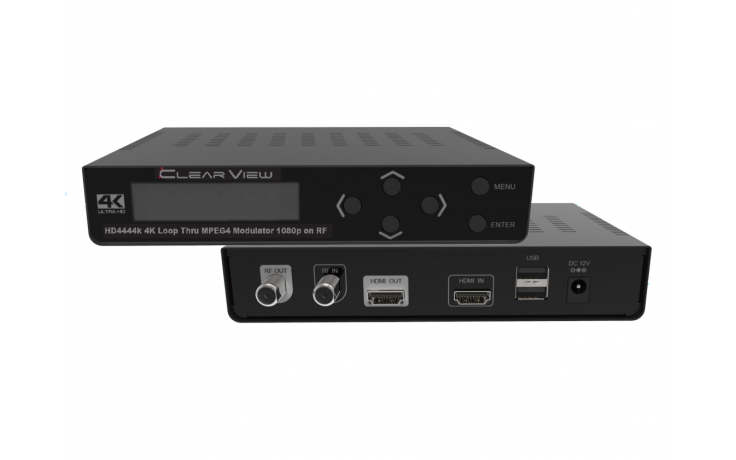

ClearView HD4444k Single HD MPEG4 DVBT Modulator HDMI 2K/4K Loop Thru with 1080p Distribution via DVBT

Connect your 4K source to your 4K TV and distribute the contennt via RF to other TVs in 1080p resolution.

Please Note



The HD4444k works on all sources on 1080p and 4K except for Foxtel IQ4 box.
On the IQ4 it will only loop through to a 4K TV
1. Turn on the HD4444K and while booting connect the IQ4 to a 4K TV
2. Go to SETTINGS on your IQ4 box and change the setting of
    SET TOP BOX HDMI SETTING
from Auto to 4K.
3. Once the HD4444K has booted connect it a on the HDMI loop thru to the 4K TV.
The RF output will distribute in 1080p resolution

User Manual is here

Specifications

Video:                          HDMI 2.0
Video System:             480i/p, 576i/p, 720p,1080i/p,
                                    4K(3840x2160 or 4092x2160)
Audio:                          HDMI
Type:                           1 Multiplex DVB-T with a digital TV service

Modulation
Standard:                   DVBT (ETSI EN 300 744)
Constellation:             QPSK, 16QAM, 64QAM
Guard Interval:           1/4, 1/8, 1/16, 1/32
Code Rate:                1/2, 2/3, 3/4, 5/6, 7/8
FFT Carrier Mode:     2K, 8K
Bandwidth:                6MHZ, 7MHz, 8MHz,  7-8MHz
‧Frequency:              177 to 858 MHz
‧MER:                          > 30dB
‧Output level:             95 dBuV Max
‧RF Level Adj:            0 dB to -30dB
‧Attenuation step:     1dB per step

Encoding
Video:                         H.264 Baseline Profile Level 4.0
Video Resolution:      1080p 25 / 30 Max
Video Bit rate:           12 Mbps Max.
Audio:                         MPEG-2 / AAC
Audio Bit rate:           192 Kbit/s
DVB insertion tables: SDT,NIT
Editable field:              SERVICE NAME , Network Name , Provider
                                   Name , TS ID , NETWORK ID , ORIGINAL NET
                                   ID , LCN , NIT VERSION , PRIVATE DATA , Country

Connections
HDMI IN:                     HDMI IN
HDMI OUT:                4K PASS THROUGH
RF Output:                 1 DVBT RF output
RF Input:                     RF Combiner
Power:                        100 to 240V 50/60Hz 12V 1.5A ADAPTOR
Display:                       LCD panel @ 2 x 16 characters
Adjustment:               6 Local keys on front panel
                                     OK Key : Select parameter, or menu
                                     L / R Keys  : Move menu, or characters
                                     Up / down : Select value of the figure, or field.
                                     Menu keys : Select menu

General
Temperature:             5deg C to 40 deg C
Relative Humidity:    80% @ 30 deg C
Weight :                      1.5Kg
Size:                            160mm x 100mm x 35mm

Availability: In stock

$499.00
