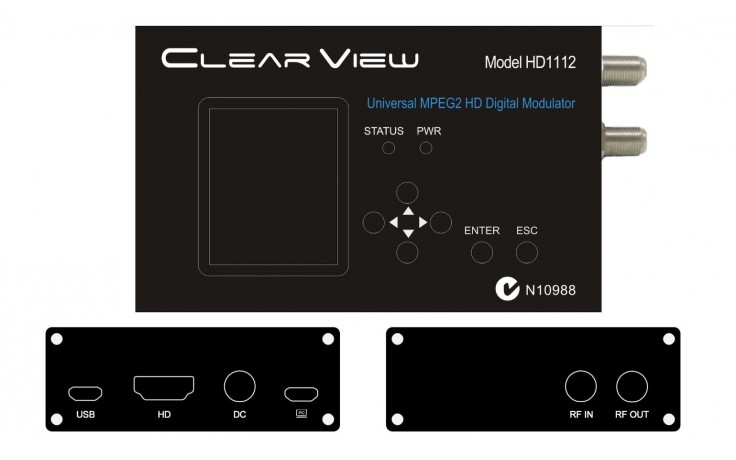

ClearView HD1112U Universal MPEG2 Single HD DVBT Modulator


◆ Multi-System, DVB-C/T/ DTMB/ ISDB-T/ ATSC/ J.83B
◆ Supports output resolutions up to 1080p

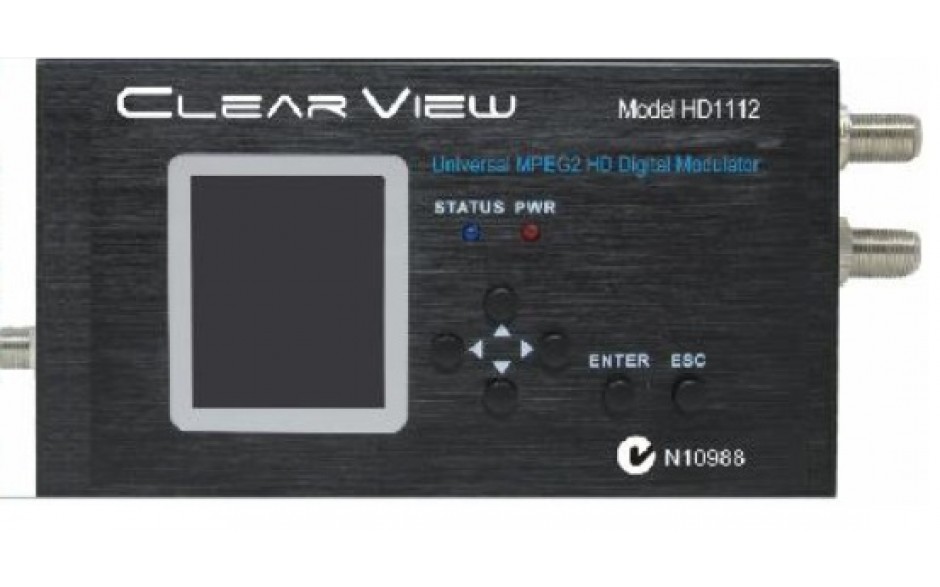

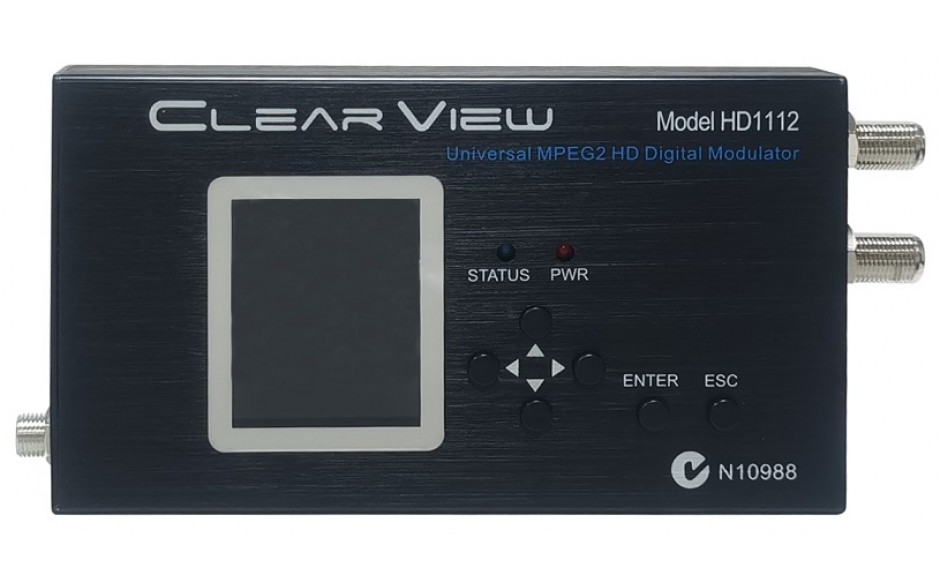

◆ Easy to use colour LCD panel and 6 key buttons
◆ Small size and Light weight
◆ Supports wall-mounting
◆ Good ventilation for the device
◆ Install multiple units onto your TV system
◆ Works well on Foxtel Live Sports
◆ Inclides Power pack with Adapters for AU, EU, North and South America.


Encoding Section-Video
Encoding                                         MPEG2

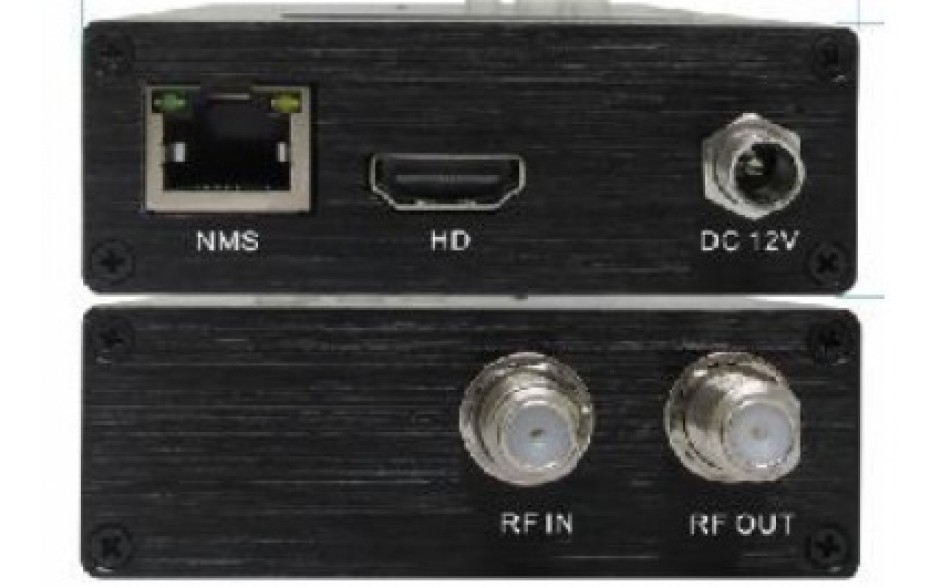

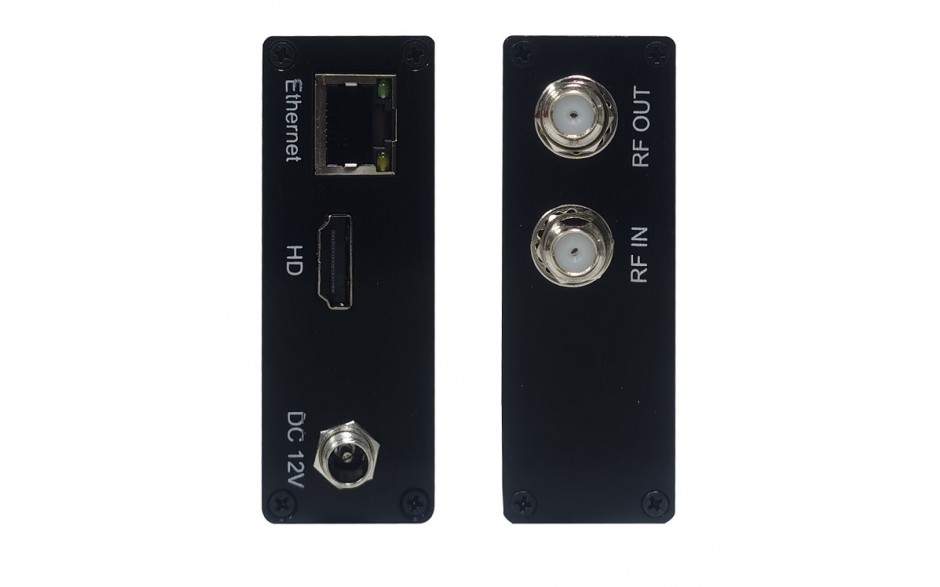

Interface                                          HDMI x 1
Input Resolution                             PAL,NTSC 720@50p, 720@60p
Output Resolution                         1080@30p Maximum
Bit rate                                             2-20Mbps

Encoding Section-Audio
Encoding                                         MPEG-1 Layer2, AAC, AC3
Sample rate                                    48KHz

Management                                  LCD + Control buttons
Language                                        English
Upgrade                                           USB Menu Configuration
Basic                                               RF range/Service Name/RF attenuation/ LCN
Advanced                                       Service provider/Network ID/ONID/TS ID/Service ID
                                                         PMT PID/VPID/APID/PCR PID/Network

Modulator Section
MER                                                 Typ. 35dB
RF range                                         50-950MHz, 1KHz stepd RF output level
Level                                               100dBuv (70-100 ADJ) Standard
System                                            DVB-C/T/ DTMB/ ISDB-T/ ATSC/ J.83B


Constellation                               16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate                                  5.000-8.000Msps ADJ
Bandwidth                                     6M, 7M, 8M
Constellation                                QPSK, 16QAM, 64QAM
Code rate                                     1/2, 2/3, 3/4, 5/6, 7/8
Guard interval                              1/4, 1/8, 1/16, 1/32
FFT                                                 2K, 8K
Bandwidth                                     6M
Constellation                                QPSK, 16QAM, 64QAM
Code rate                                      1/2, 2/3, 3/4, 5/6, 7/8
Guard interval                               1/4, 1/8, 1/16, 1/32
FFT                                                 2K, 4K, 8K
Constellation                                GB20600-2006
Constellation                                8VSB
QAM J.83B                                    64QAM, 256QAM

Power supply                                12V1A
Dimensions                                  128 x 77 x 28mm
Weight                                            350g


Availability: In stock
