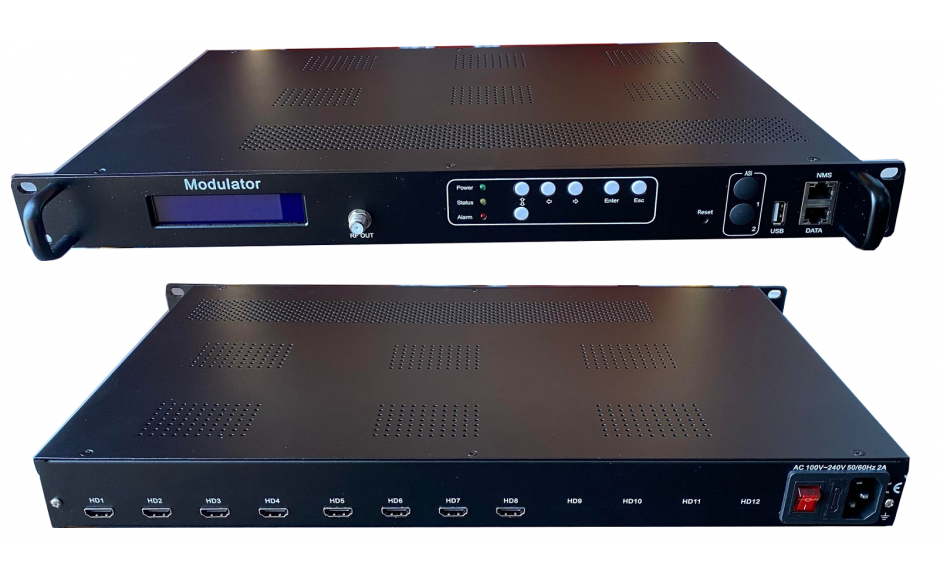

HD244-8 8 x HDMI Input, HD MPEG4 modulator with 4 x DVBT carriers out, and IP in and out.


HD244-8 Encoder Modulator supports 8 HDMI inputs, 1GbE IP input/output, 4 x single carrier DVB-T outputs.
It also supports 1 MPTS and 128 SPTS output, as well as 128 IP address inputs. With high integration, high
performance and low cost, the single RU equipment makes a compact headend.

8 inputs can be routed to 1,2,3 or 4 carriers via multiplexer.

8 x HDMI inputs
1  x GbE IP input/output, UDP/RTP (multicast)
128 x IP address inputs, 1 MPTS* x 128 SPTS outputs
DVBT RF Output
2 x ASI inputs (optional)
2 x ASI output (optional)
Front panel LCD and button
WEB management system
Supports online upgrade.

8 x HDMI ver 1.4
2 x ASI inputs (optional)
128 x SPTS IP address inputs

4 x RF carriers DVBT
2 x ASI outputs (optional)
1 MPTS, 127 SPTS IP outputs

Coding format
MPEG-4 AVC/H.264

Input: 1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i @50/59.94Hz
Output: 1920×1080_25P_30P_50P_60P, 1280×720_25P_30P_50P_60P,
Bitrate 1Mbps to 13Mbps (Each channel)
Rate mode CBR

Audio Coding
Coding format MPEG1 Layer2, LC AAC, HE AAC, HE AAC+
Sampling rate 44.1KHz,48KHz
Bit-rate 32,48,64,128,192,256,320,384kbps

Modulation Standard DVBT
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation DQPSK, QPSK, 16QAM, 64QAM
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER> 40dB

Temperature 0 to 45℃(Working); -20to 80℃(Storage)
Power Supply AC100~240V, 50/60Hz
Dimensions (L x W x H) 482mm×410mm×44mm
Weight 6kg

Availability: In stock
