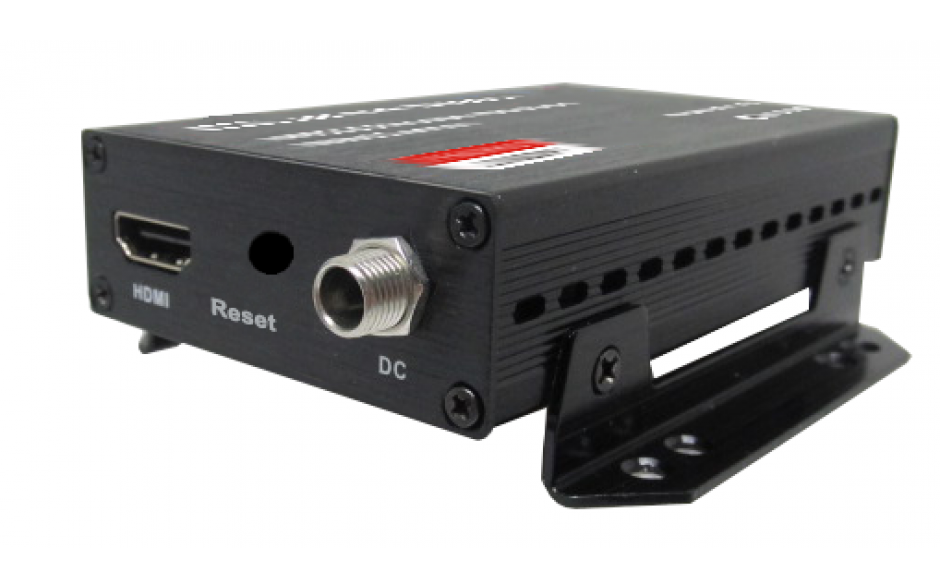

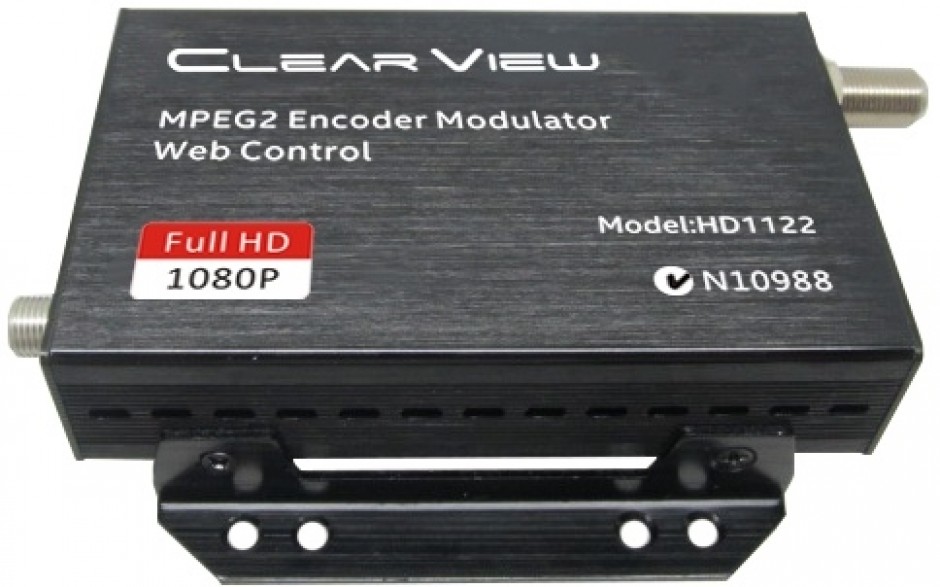

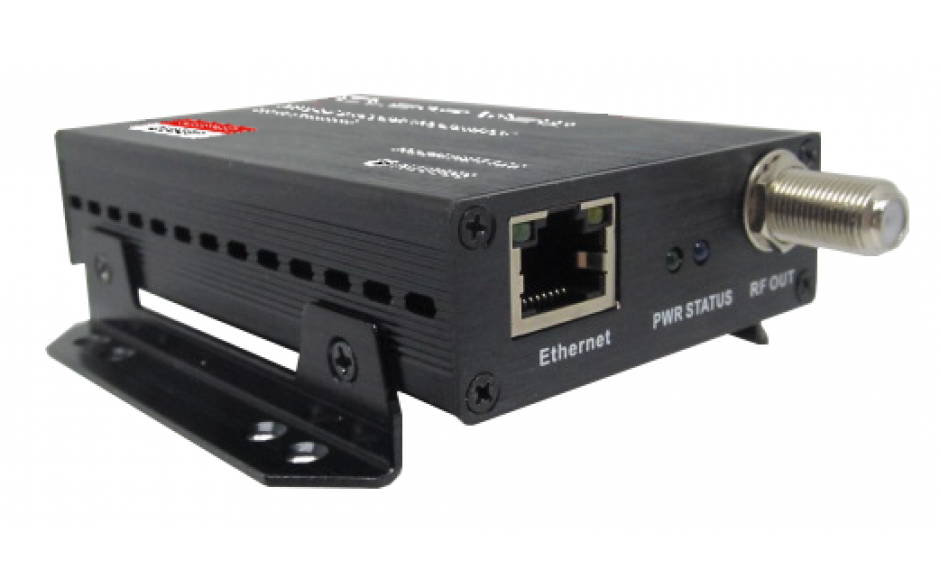

ClearView HD1122 MPEG2 Single HD DVBT Modulator Web GUI Control

Details

◆ Supports output resolutions up to 1080p
◆ Web GUI Control ONLY
◆ Small size and Light weight
◆ Supports wall-mounting
◆ Good ventilation for the device
◆ Rack Position for Installation of multiple units onto your TV system
◆ Works well on Foxtel Live Sports
Low Latency Setting down to 100 milliseconds

19 inch rack frame available for mounting multiple units- BUY HERE


Specifications

Encoding Section-Video
Encoding                                         MPEG2
Interface                                         HDMI x 1
Input Resolution                             PAL,NTSC 720@50p, 720@60p
                                                         1080@50i/p,1080@60i/p
Output Resolution                         1080@30p Maximum
Bit rate                                            2-20Mbps

Encoding Section-Audio
Encoding                                         MPEG-1 Layer2, AAC, AC3
Sample rate                                    48KHz

System
Management                                  Web GUI via Browser
Language                                        English
Upgrade                                           USB Menu Configuration
Basic                                               RF range/Service Name/RF attenuation/ LCN
Advanced                                       Service provider/Network ID/ONID/TS ID/Service ID
                                                         PMT PID/VPID/APID/PCR PID/Network

Modulator Section
MER                                                 Typ. 35dB
RF range                                         50-950MHz, 1KHz stepd RF output level
Level                                               100dBuv (70-100 ADJ) Standard
System                                            DVB-T
Bandwidth                                       6M, 7M, 8M
Constellation                                   QPSK, 16QAM, 64QAM
Code rate                                        1/2, 2/3, 3/4, 5/6, 7/8
Guard interval                                 1/4, 1/8, 1/16, 1/32
FFT                                                  2K, 8K

General
Power supply                                  12V1A
Dimensions                                      128 x 77 x 28mm
Weight                                              350g



Availability: In stock

$440.00
