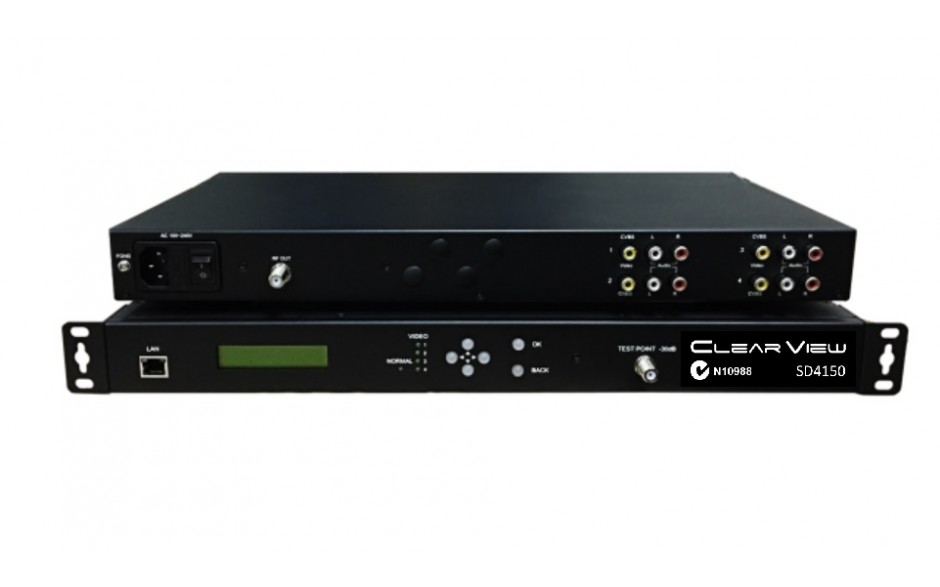

4 x CVBS to 1 x DVB-T Premium Quad MPEG-2 SD Modulator SD4150
* KEY FEATURES
- Adjustable Aspect Ratio
The SD4150 can be adjusted to match the aspect ratio of your media source, whether it's wide screen or full screen.
- Test Point -30dB
Test point on the front panel enables user to test the performance without removing the unit from the shelf.
- Fan-less product
Natural convention cooling for reducing maintenance costs.
- Ease of management:
On-site or remote management via front panel display and intuitive web interface.
* SPECIFICATIONS
|
Video Input
|
Type
|
4 x CVBS
|
|
|
Video encoding format
|
MPEG2
|
|
|
Audio encoding format
|
MPEG-1 audio layer ll (ISO/IEC 11172-3)
|
|
|
Supported resolution
|
576i/480i
|
|
DVB-T mode
|
Bandwidth
|
6/7/8 MHz
|
|
|
Mode
|
2K/8K
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|
Guard interval
|
1/4, 1/8, 1/16, 1/32
|
|
|
Constellation
|
16QAM/64QAM
|
|
RF output
|
Type
|
1 x RF out, 1 x Test Point -30dB
|
|
|
Frequency
|
50~860MHz
|
|
|
Output level
|
75~105dBuV
|
|
|
MER
|
DVB-T mode > 36dB
|
|
|
Connector type
|
F, female
|
|
Other setting
|
Basic
|
Service name, Service ID and LCN
|
|
|
Advanced
|
PID, PDS and TSID
|
|
|
Local operation
|
LCD display and buttons
|
|
|
Remote operation
|
10/100M LAN network
|
|
General
|
Power supply
|
110~240VAC, 50/60Hz
|
|
|
Operating temperature
|
0~55 degree C
|
|
|
CE & Safety
|
Yes
|
|
|
Dimensions
|
44x440x280mm
|
|
|
Weight
|
3.5 kgs
|
* WHAT'S INCLUDED
1 x SD4150
1 x AC power lead
1 x User manual
