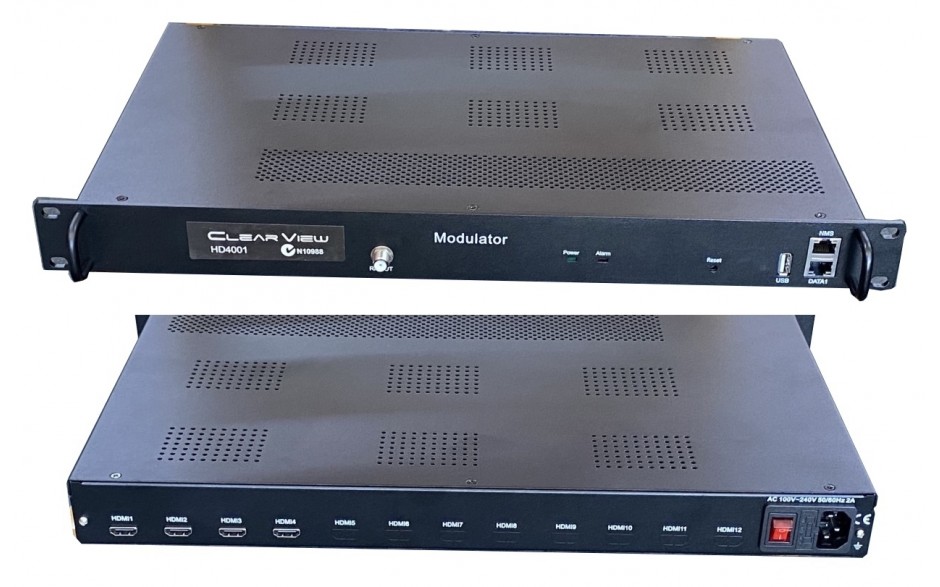

HD4001 4 x HDMI Input, HD MPEG4 modulator with 4 x DVBT carriers out, and IP out.


HD4001 Encoder Modulator supports 4 HDMI inputs, 1GbE IP output, 4 x single carrier DVB-T outputs.
It also supports 1 MPTS and 128 SPTS output. With high integration, high
performance and low cost, the single RU equipment makes a compact headend.

4 x HDMI inputs
1  x GbE IP output, UDP/RTP (multicast)
1 MPTS x 128 SPTS outputs
DVBT RF Output
WEB management system
Supports online upgrade.

4 x HDMI ver 1.4

4 x RF carriers DVBT
1 MPTS, 127 SPTS IP outputs

Coding format
MPEG-4 AVC/H.264

Input: 1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i @50/59.94Hz
Output: 1920×1080_25P_30P_50P_60P, 1280×720_25P_30P_50P_60P,
Bitrate 1Mbps to 13Mbps (Each channel)
Rate mode CBR

Audio Coding
Coding format MPEG1 Layer2, LC AAC, HE AAC, HE AAC+
Sampling rate 44.1KHz,48KHz
Bit-rate 32,48,64,128,192,256,320,384kbps

Modulation Standard DVBT
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation DQPSK, QPSK, 16QAM, 64QAM
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER> 40dB

Temperature 0 to 45℃(Working); -20to 80℃(Storage)
Power Supply AC100~240V, 50/60Hz
Dimensions (L x W x H) 410mm×300mm×44mm
Weight 4kg

Availability: In stock
