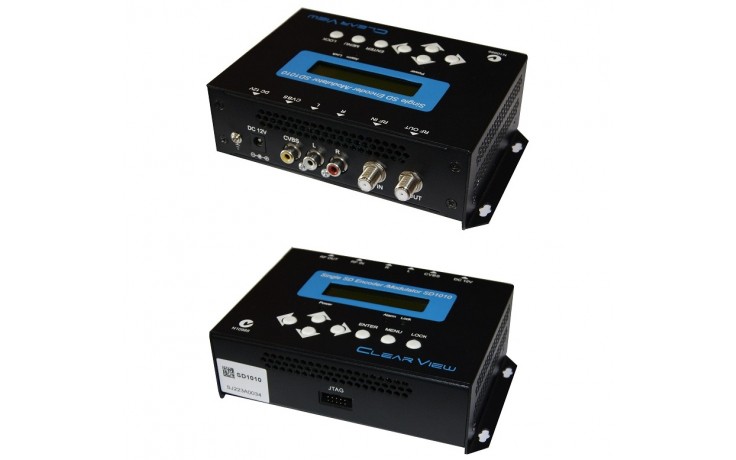

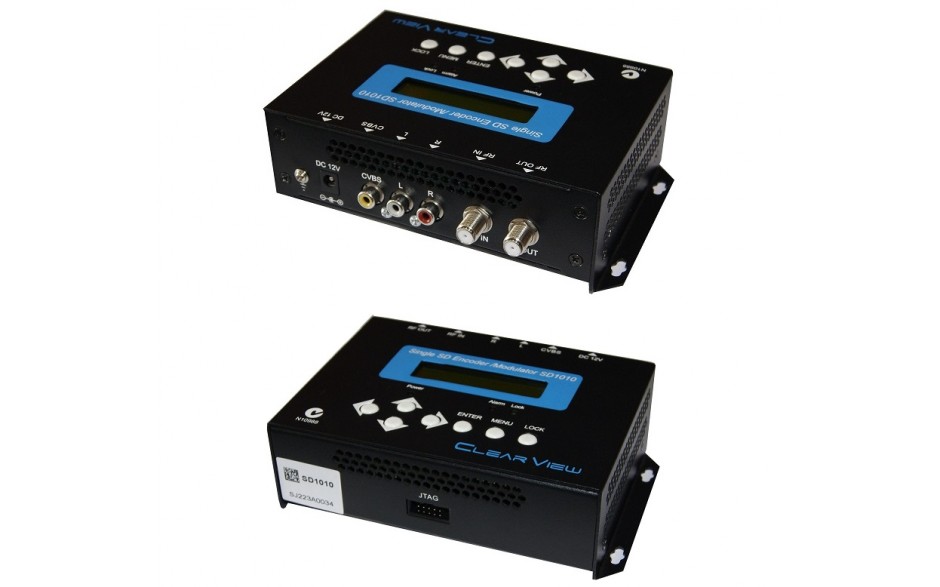

The ClearView SD1010u is an encoder modulator
with breakthrough pricing. It converts SD video
and audio signals from a source to a digital
terrestrial signal for distribution throughout
a home, hotel or motel. Any standard MPEG4 digital
terrestrial set-top box or TV can receive the
signal. The parameters are set via the local
buttons and LCD screen. Software can be updated
vis the USB port. The LCN and Channel name are
adjustable by the user.
NOTE This will play only on later TVs
that play MPEG4 content. Older TVs
WILL NOT WORK!
Specifications
Encoding Section
Video Encoding: MPEG4 H264 only
Video Input: 1 x composite port via RCA
Resolution: 720x576@50i (PAL), 720x480@60i (NTSC)
Encoding Bit rate: 1 to 19 Mbits/sec adjustable
Audio Encoding: MPEG1 Layer II
Audio Input: 2 x RCAs stereo
Sample rate: 48KHz
Bit rate: 64kbps, 96kbps, 128kbps,
192kbps, 256kbps, 320kbps
Modulating Section
Standard: DVB-T COFDM
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 8K
MER: >35dB
RF frequency out: Ch 6 to 12 and 28 to 69 in channel steps
RF output level: 83 to 97 dbuV)
in 0.1db steps
System
Management: LCD and control buttons
Language: English
LCN Insertion: yes
Custom Channel: Name: yes
Firmware upgrade via USB port
General
Power input: DC 12V 3A
Power Adaptor: 100-240VAC 50/60Hz
Dimensions: 141x110x44mm
Weight: 750g
Operating temperature: 0 to 45 degrees C
NOTE This will play only on later TVs
that play MPEG4 content. Older TVs
WILL NOT WORK!
