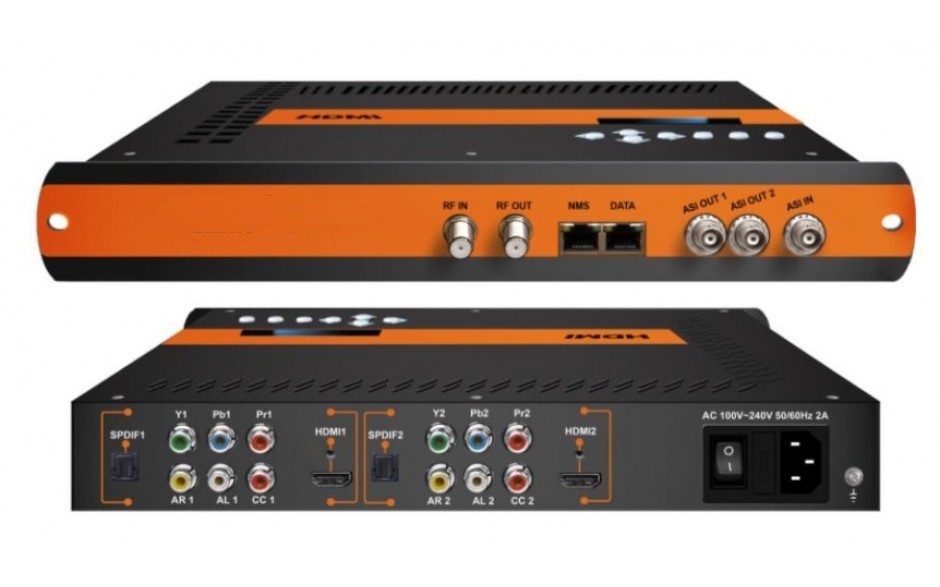

The HD2102 series products are ClearViews's
all-in-one devices which integrate encoding
(MPEG-2, MPEG-4/AVC H.264) and modulation
to convert HDMI/YPbPr /CVBS signals to a
digital RF output. To meet customers' various
requirements, HD2102 is also equipped with 1 x ASI
input, and output with 2 x ASI ports and 1 x IP port.

Key Features
* MPEG2 HD & MPEG4 AVC H.264 HD video encoding
* DD AC3 (2.0 standard), MPEG4-AAC, MPEG2-AAC,
MPEG1 Layer II audio encoding
* Supports DD AC3 (2.0/5.1/7.1) passthrough
* Support AC3 Dialog Normalization
* 2 x HDMI/YPbPr/CVBS (Pr in) channels in
* 1 x ASI in for re-mux; 1*RF in for RF mix
* 2 x DVBT RF carriers out in one device
* 2 separate ASI output to mirror MPTS or one carrier programs
* IP(2 x SPTS & 1 x MPTS) out
* Supports CC (Closed Caption) EIA608
* Supports Low Delay
* LCN (Logical Channel Number) support
* VCT (Virtual Channel Table) support
* Excellent modulation quality
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web

Specifications

Encoding Section
Video (HDMI)
Encoding MPEG2; MPEG4 AVC/H.264
Interface HDMI x 2
Resolution 1920 x 1080_60P, 1920 x 1080_50P (For MPEG 4 AVC/H.264 only),
1920 x 1080_60i, 1920 x 1080_50i, 1280 x 720_60p, 1280 x 720_50P (MPEG 2)
Low Delay, Normal, Mode 1, Mode 2
Aspect Ratio 4:3; 16:9
Audio (HDMI)
Encoding MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD
AC3(2.0) (Optional) DD AC3 (2.0/5.1/7.1) passthrough
Interface HDMI x 2
Sample rate 48KHz
Bit rate 64/96/128/ 192/256/320kbps
Video (CVBS/YPbPr)
Encoding MPEG2; MPEG4 AVC/H.264
Interface CVBS/YPbPr x 2 (RCA)
Resolution
CVBS: 720 x 576_50i, 720 x 480_60i
Audio (L/R)
YPbPr:1920 x 1080_60i, 1920 x 1080_50i; 1280 x 720_60p, 1280 x 720_50P
Encoding MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD
AC3(2.0) DD AC3 (2.0/5.1/7.1) passthrough
Interface 2 x Stereo//4 x mono
Sample rate 48KHz
Bit rate 64/96/128/ 192/256/320kbps

DVB-T Modulator Section
Standard EN300744
FFT mode 2K, 8K
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER >42dB
RF frequency 30 to 960MHz, 1KHz step
RF out COFDM DVB-T out (2 carriers combined out)
RF output level -30 to -10dbm (81 to 97 dbuV), in 0.1db steps

System
Local interface LCD + control buttons
Remote management Web NMS
Stream Output 2 ASI mirrored out (BNC type, 100M)
IP (2 SPTS) over UDP, RTP/RTSP out (RJ45, 100M)
NMS interface RJ45, 100M
Language English

General
Power supply AC 100V-240V
Dimensions 333 x 232 x 44mm
Weight 4.0 kg
Operation temperature 0 to45 Deg C
