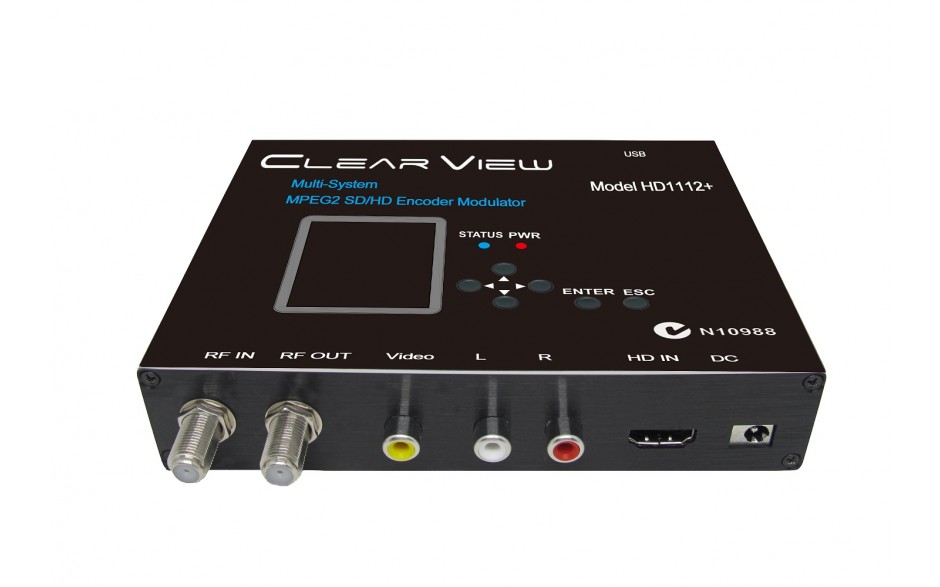

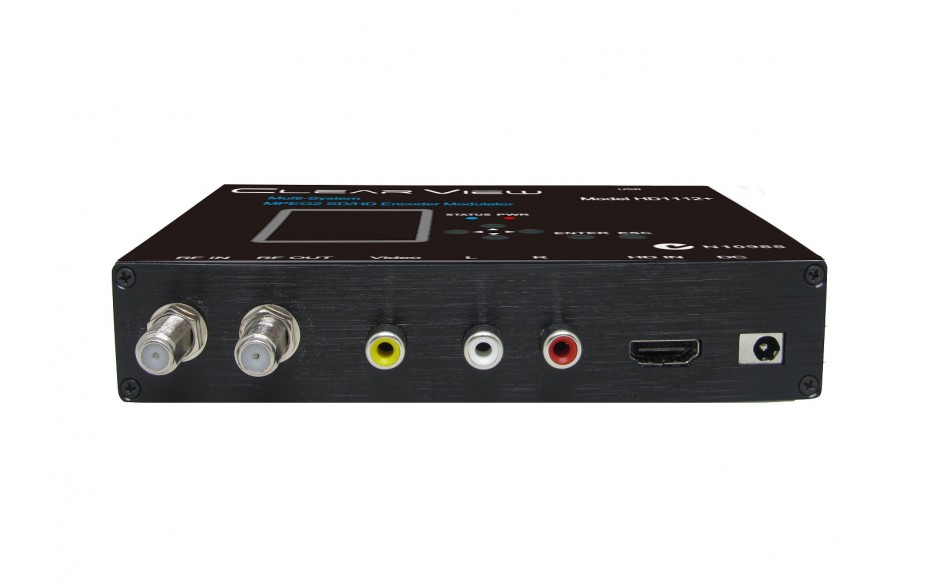

ClearView HD1112+ Multi-System MPEG2 SD/HD Digital Modulator

Details

Quick Setup Guide Here

Convert your local AV and HDMI signal into an RF signal. Ready for distribution over coaxial cable.
The modulator supports cable and terrestrial standards.

Features

  • AV or HDMI to HDTV Modulator up to 1080p
  • Supports multi digital TV standard

(DVB-T, DVB-C, DTMB, ISDB-T)

  • Easy to use colour LCD panel and 6 key buttons.
  • Plus Web GUI Control
  • Supports AC3 and AAC

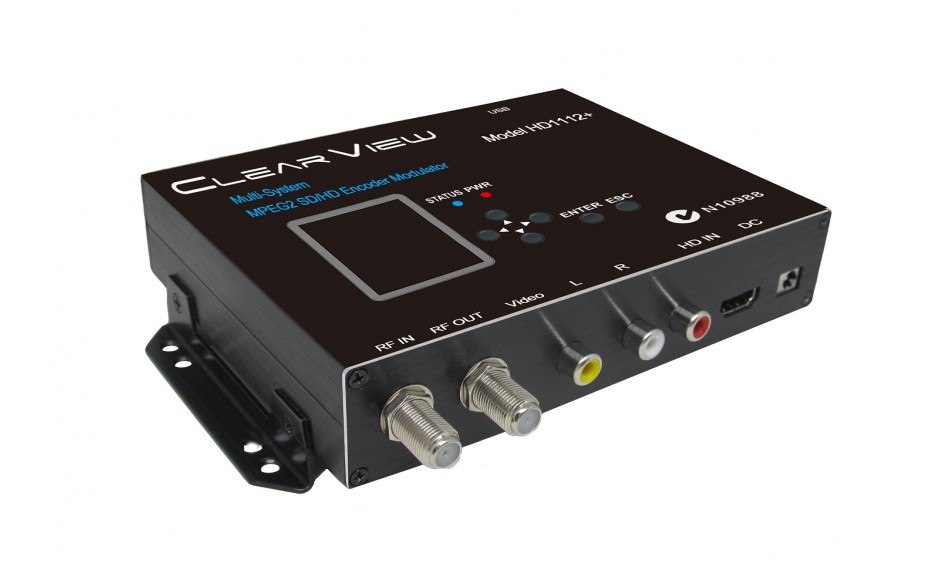

  • Supports Wall-mount type
  • Optimized for cascading multiple modulators on your coaxial network

Specifications:

 General

 Power



 12V1A, Screw lock type adapter. 100-240VAC Adaptor included

 Dimension

 mm

 151 x 115 x 32

 Weight

 grams

 700

 AV and HDMI Input

 Video resolution



 NTSC, PAL

 720p, 1080i, 1080p

 Video encoding



 MPEG2

 Audio encoding



 MPEG1 Layer II / AAC /AC3

 RF Output

 Frequency Range

 MHz

 50-950, 1K steps

 Output level

 dBμV

 100 (70-100 adjustable)

 MER

 dB

 Typical. > 35

 Output Settings

 Standard



 DVB-T

 DVB-C

 DTMB

 ISDB-T

 Bandwidth



 6, 7, 8

 8

 8

 6





 Constellation





 QPSK

16QAM

 64QAM

 16QAM

 32QAM

 64QAM

 128QAM

 256QAM





 GB20600-2006



 QPSK

 16QAM

 64QAM



 Other setting



 Code rate

 Guard Interval

 FFT



 Symbol rate



 Code rate

 Guard Interval

 FFT

 Menu Configuration

 Basic

 Video Input select / RF output type / RF range/ LCN, Key ID/ Service Name

 Advanced

 Video & Audio/ SID / PMT, VPID, APID/ NIT, ONID/ PDS/ TS ID/ RF output attenuation

Availability: In stock

$499.00
