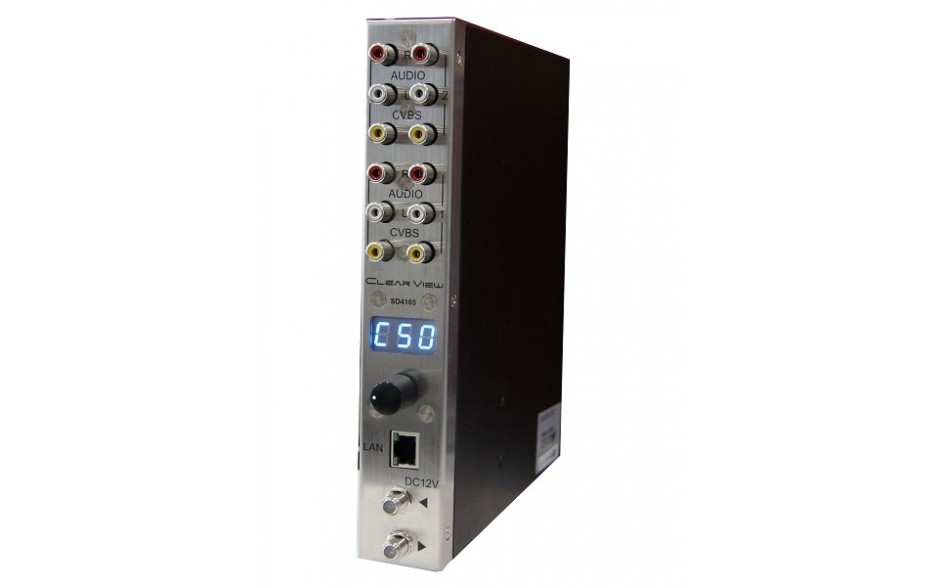

The SD4105 is a 4 composite video inputs standard
definition DVB-T COFDM modulator which provides a
COFDM RF signal in range of 50-860MHz. The SD4105
is designed to achieve 576i/480i by using an MPEG2
low latency encoding engine and state-of-the-art
COFDM modulation technologies. It is an excellent
choice to convert SD video/audio signals to digital
TV signals for distribution though your home or an
MATV system.

Features include-
* Integration of Encoder, TSMux
and DVB-T Modulator in one box.
* Multi-channel video interface,
4 composite video (CVBS) on 1 RF carrier
* Multiple audio format compatibility
including MPEG-l Layer II
* Frequency Range: 50-860MHz
* Programmable PMT/Video/ Audio/PCR PID
* Programmable Network ID, Network Name,
Service Name, Private Data Specifier and
Logical Channel Number
* User friendly configuration programmable
via Knob and easy and fast web GUI via LAN

Specifications
Video
4 CVBS Inputs vis fron RCA sockets
MPEG-2 encoding format Video (ISO/IEC 13818-2)
MPEG2 MP@ML
Video Resolutions 576i/480i

Audio
4 stereo 10K ohm inputs via RCA sockets
MPEG-1 encoding format Audio Layer 1I
(ISO/IEClll72-3)

Stream
PMT/Video/Audio/PCR PID Settings
15 Alpha numberic characters for Service name
Network Name/Original Network ID/Network ID/
Private Data Specifier
16 bit transport stream ID

System
Parameter adjustable by front knob and LED
display, of via web GUI
Din rail mounting system

Modulation
DVB-T Standard (ETSEN300 744)
Bandwidth 6/7/8 MHz
Carriers 2K/8K
Constellation 16QAM/64QAM/QPSK
Guard Interval 1/4,1/8,1/16,1/32
Code Rate 1/2,2/3,3/4,5/6,7/8
Frequency Range 50-860MHz
Output Level 65-80dBuV
MER >40dB (Typical)

General
Dimensions 40mm x 245mm x 132mm
Powered by 12V DC 2A Power Pack supplied
100 to 240VAC
25W power consumption
2.5Kg weight
